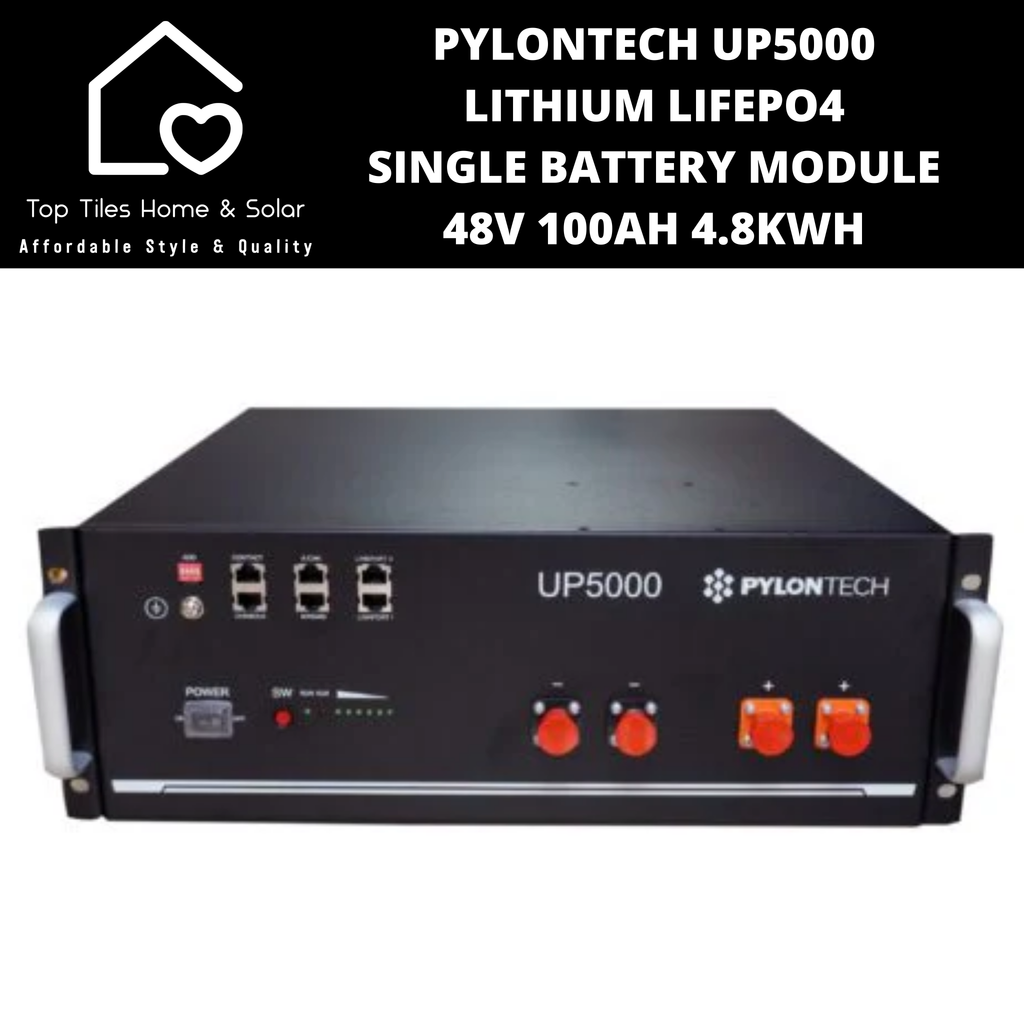

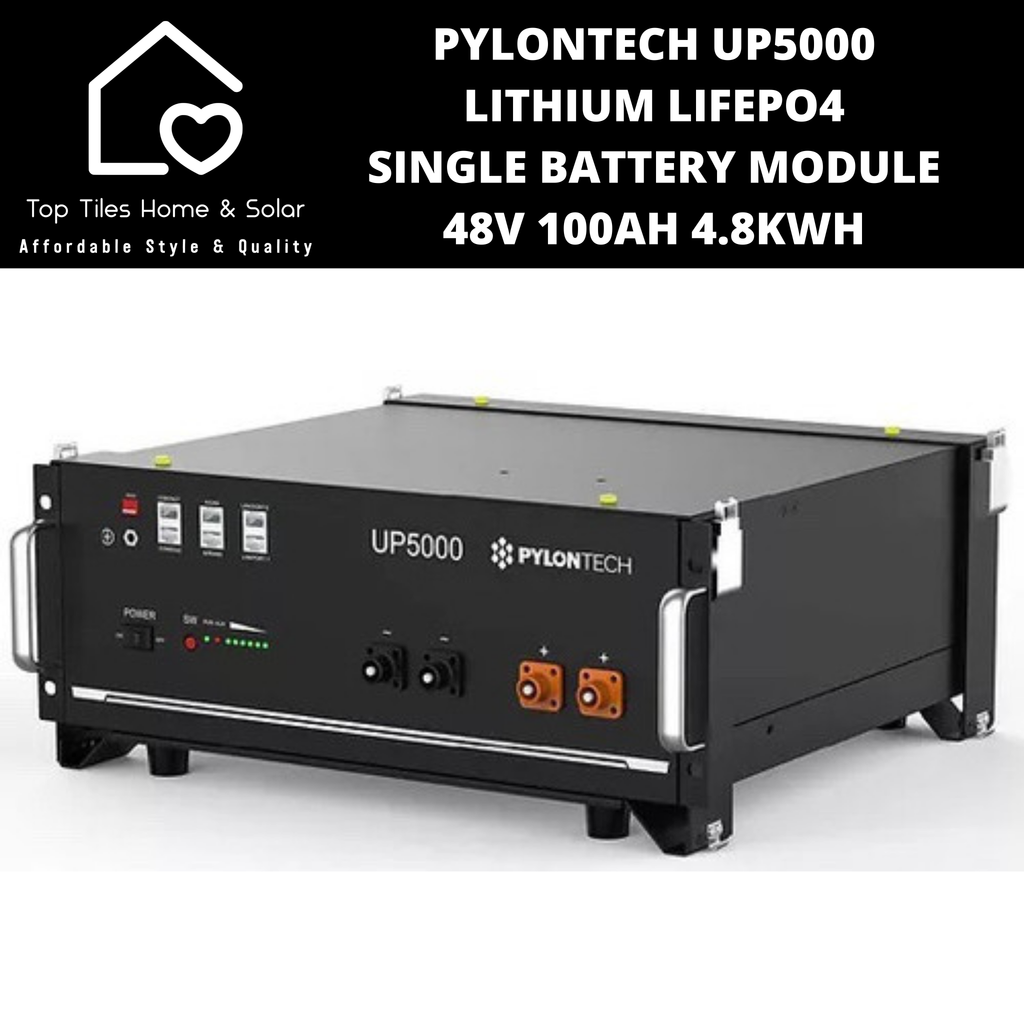

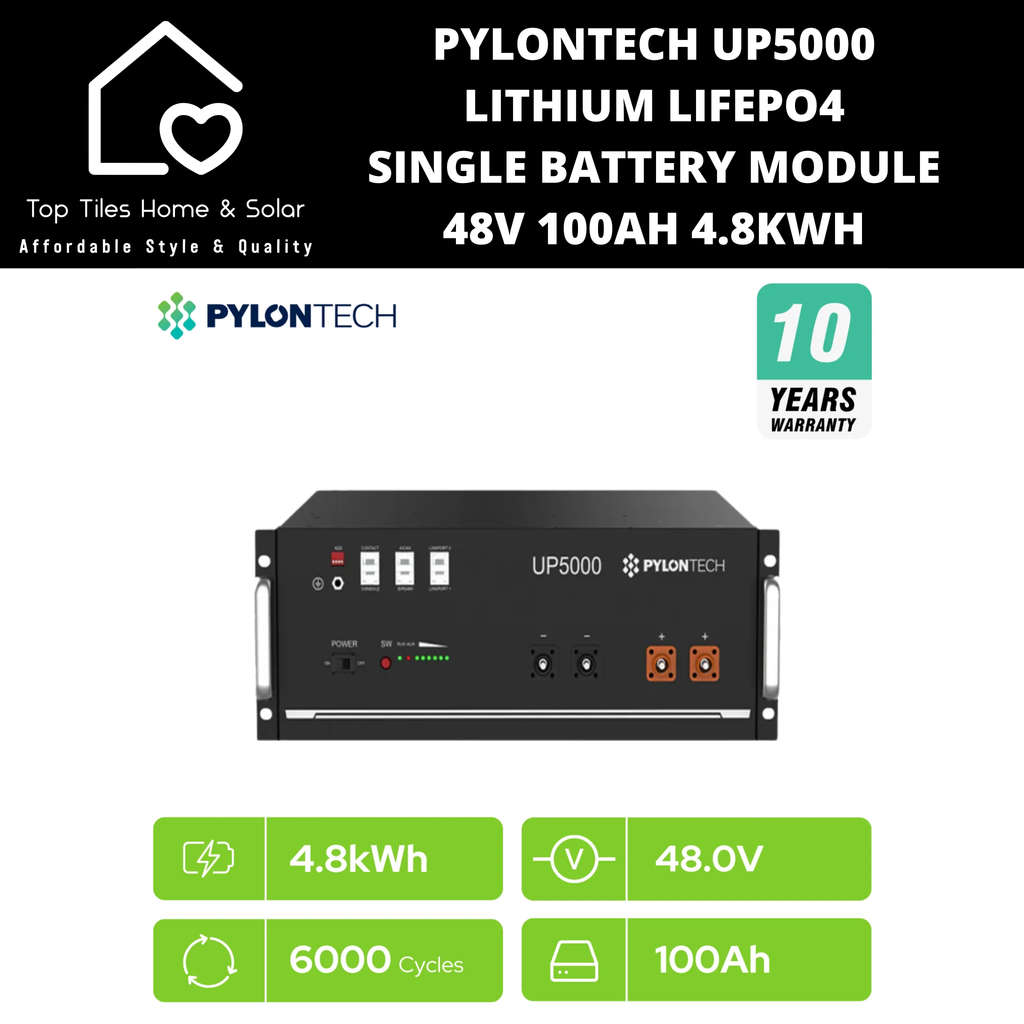

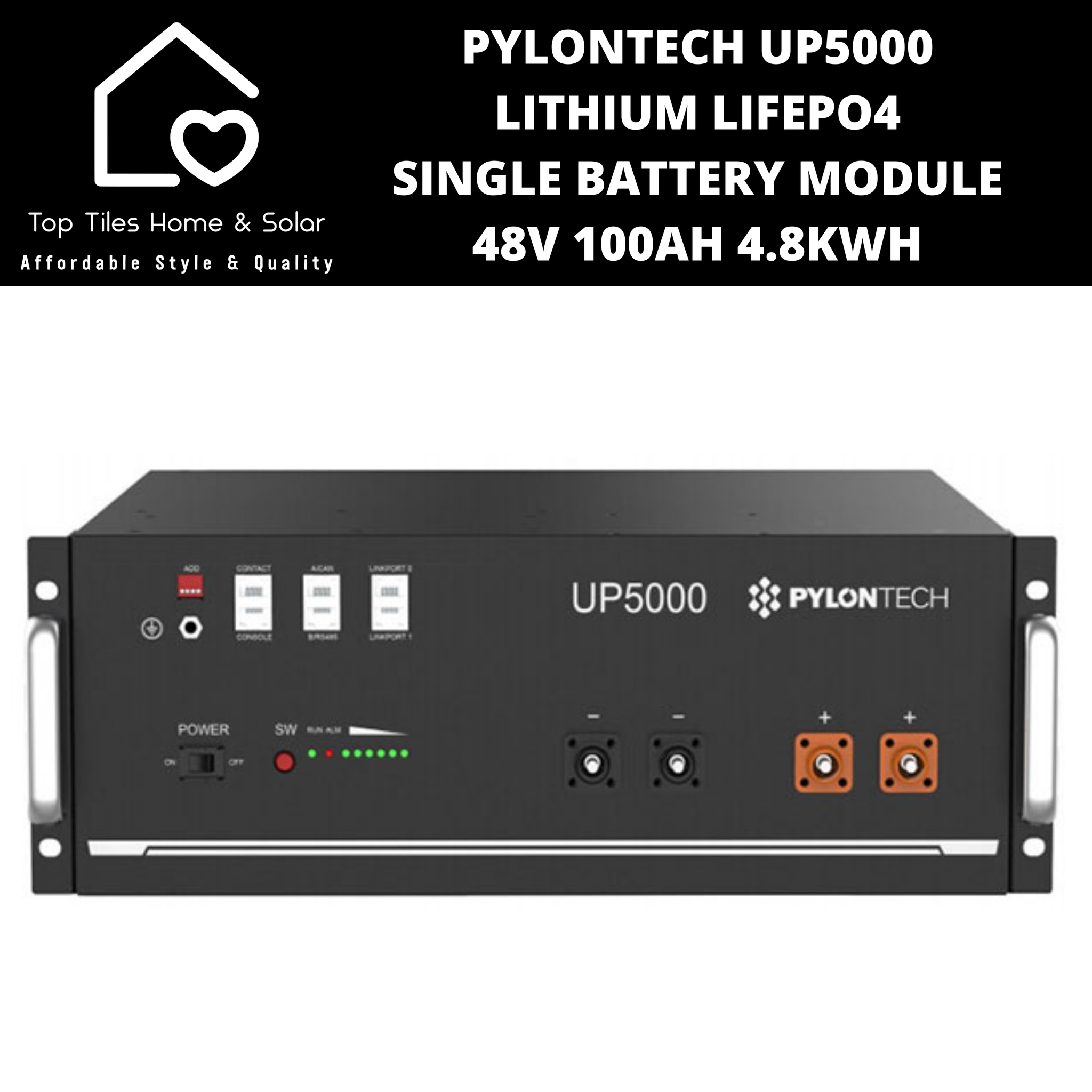

Pylontech UP5000 Lithium LiFePo4 Single Solar Battery Module - 48V 100Ah 4.8kWh
Pylontech UP5000 Lithium LiFePo4 Single Battery Module - 48V 100Ah 4.8kWh
Pylontech UP5000 4.8kWh solar battery
A new battery in the UP series from Pylontech. The UP5000 is a 48V battery with incredible features to provide a competitive edge in the market.
Pylontech UP5000 4.8kWh solar battery Features
- Modular design for ease of expansion
- · Higher usable capacity resulting in fewer battery modules installed
- · Usable capacity 4 560Wh
- · Parallel Capability of up to 16 units
- · Allows for a large installation of up to 72.96kWh with no LV Hub
- · Intelligent BMS protecting battery cells
- · 95% DoD with a more usable capacity
- · RS485 and CAN compatible
Important
MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.
Nominal Voltage (VDC)
48
Nominal Capacity (kWh)
4.8
Usable Capacity (kWh)
4.56
Dimension (W*D*H mm)
442*420*165
Weight (kg)
40
Depth of Discharge
95%
Charge/Discharge (A) (Normal)
50
Charge/Discharge (A) (Max)
74~89@69S
Charge/Discharge (A) (Peak)
90~200@15S
Communication Port
RS485/CAN
Single String Quantity (pcs)
16
Working Temperature/ (℃) Charge
0~50
Working Temperature/ (℃) Discharge
-10~50
Storage Temperature/ (℃)
-20~60
Short current/duration time (A)
<4000/2ms
IP rating
IP20
Humidity (RH)
5%~95% No condensation
Altitude (m)
<4000
Design life (@25℃)
10+year
Cycle Life (@25℃)
>6,000
Certification
IEC62619/IEC63056/IEC61000-6-2/3/UN38.3
