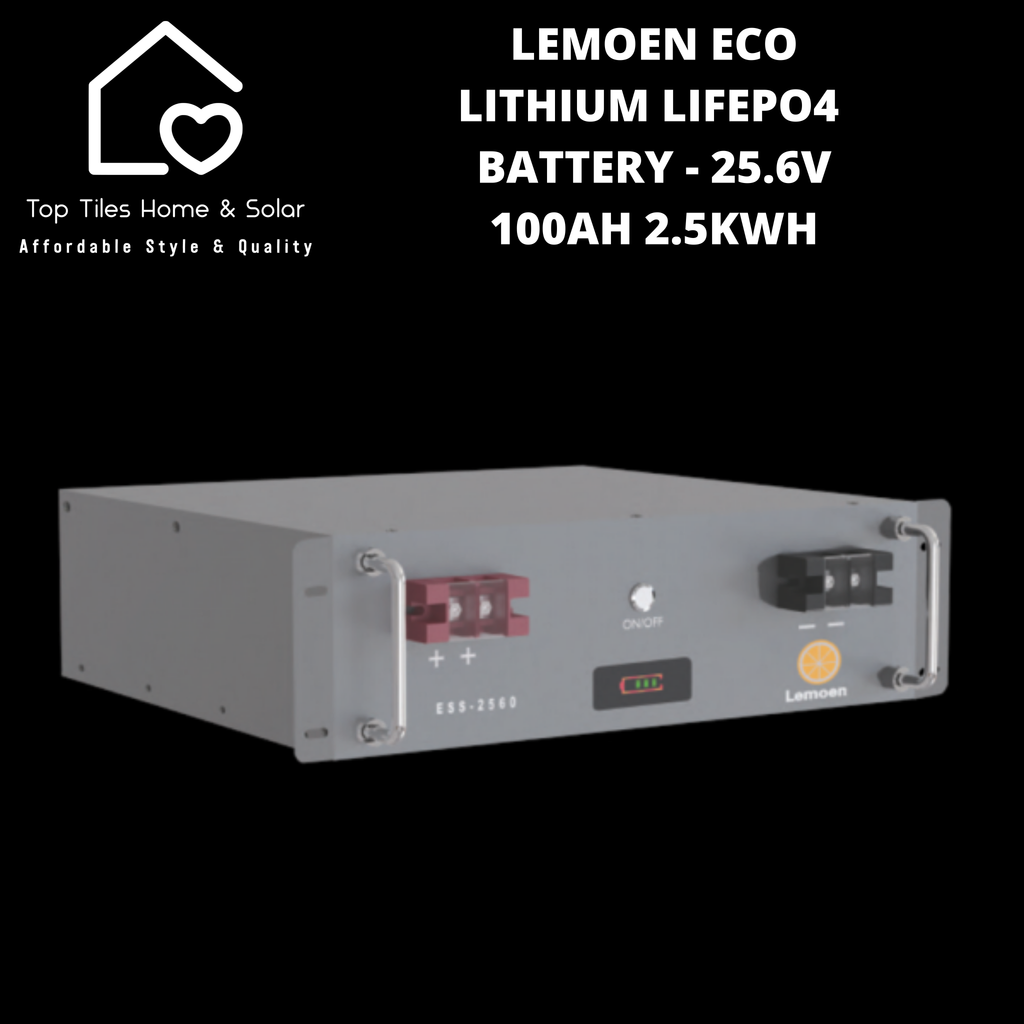

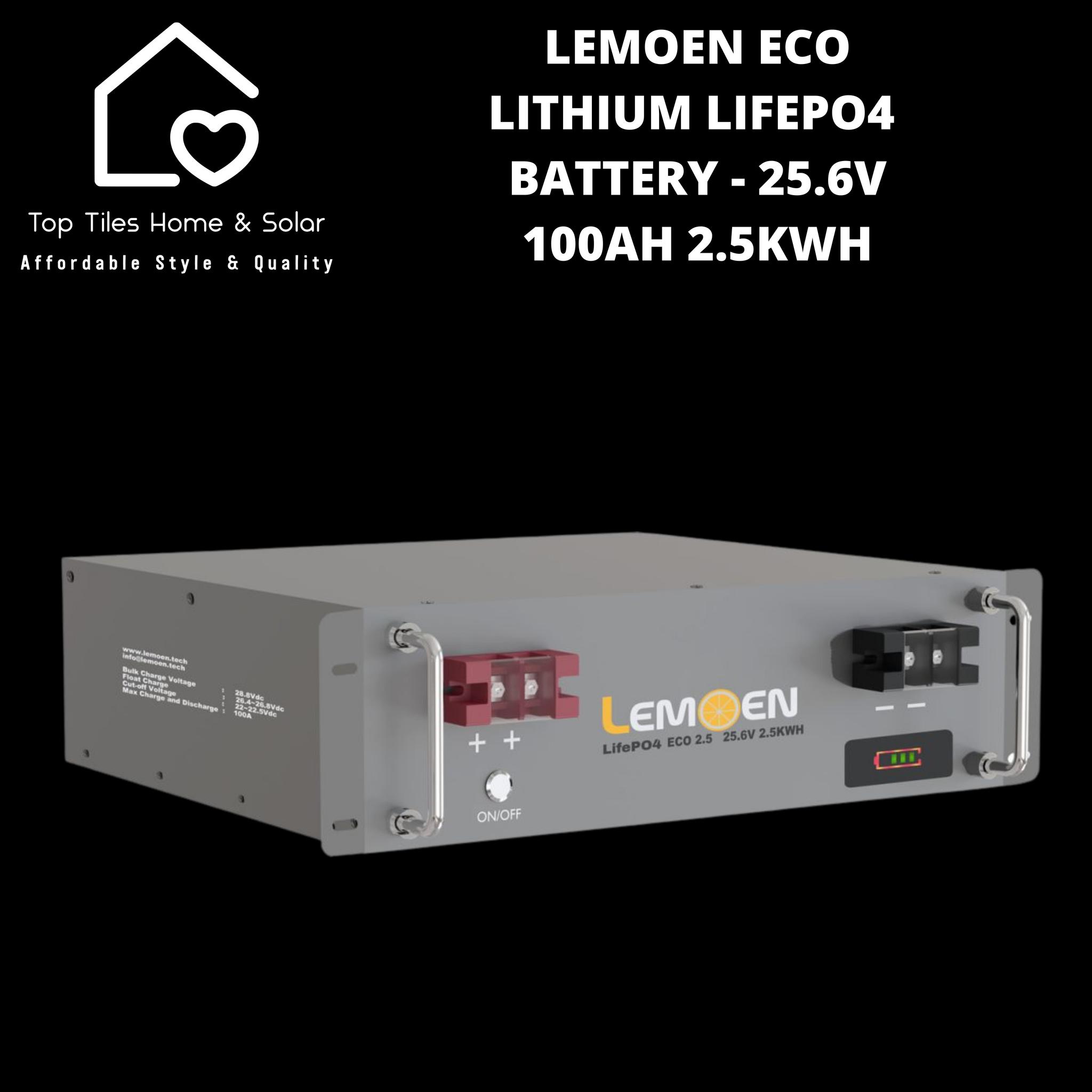

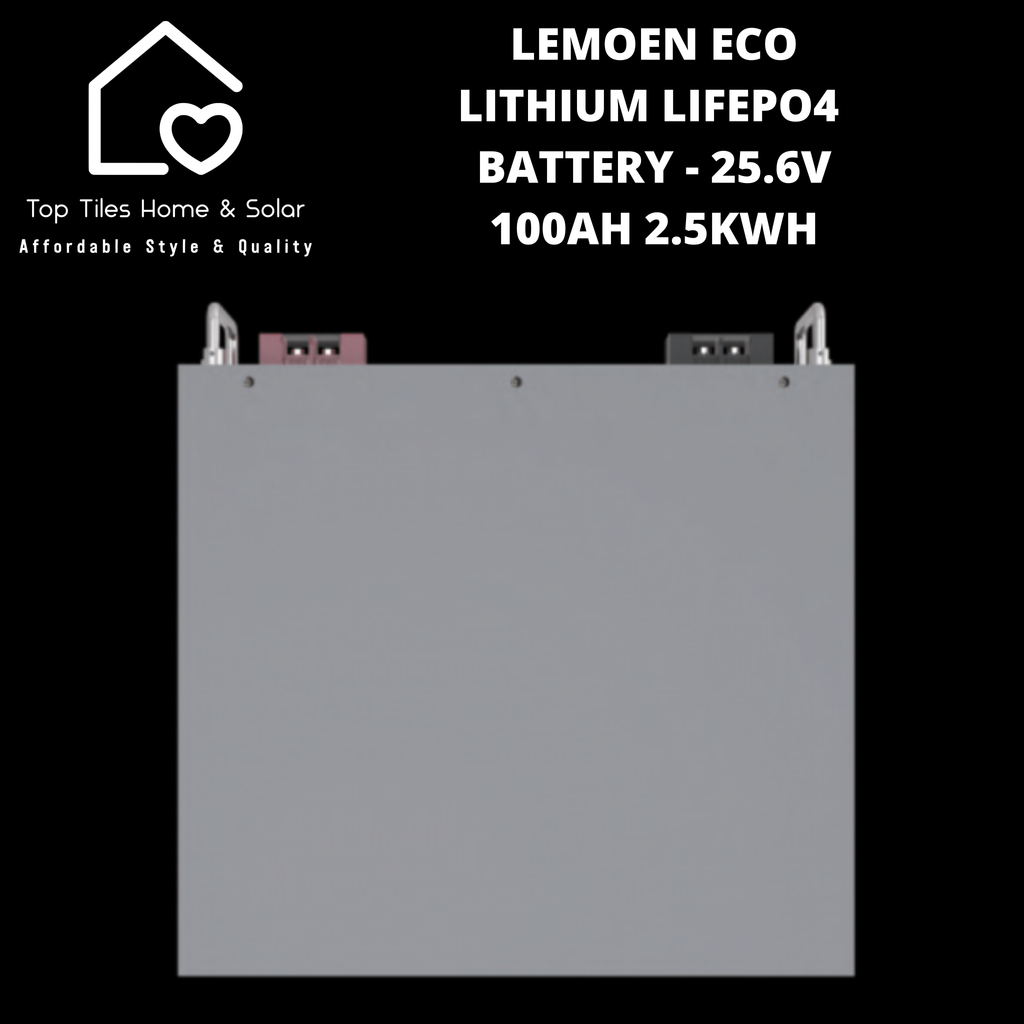

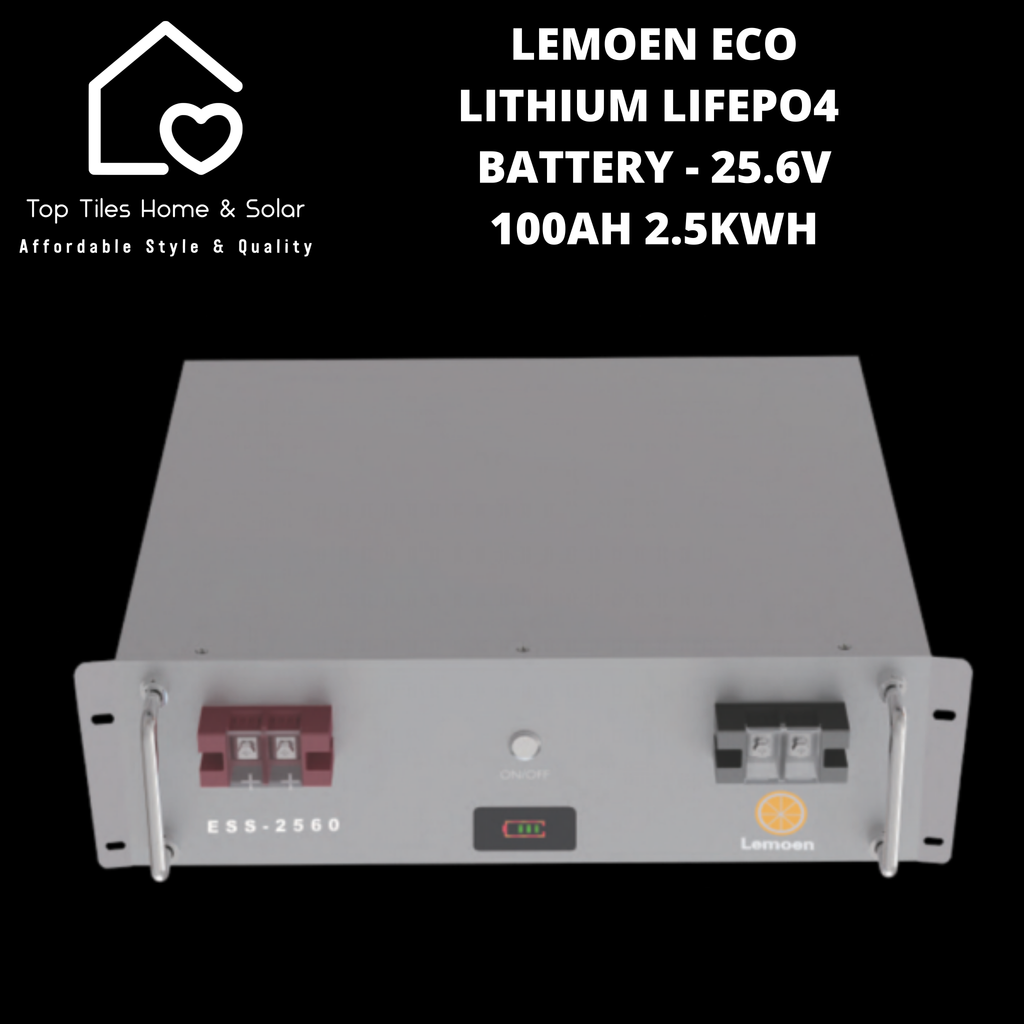

Lemoen Eco Lithium LiFePo4 Single Solar Battery Module - 25.6V 100Ah 2.5kWh
Lemoen Eco Lithium LiFePo4 Single Battery Module - 25.6V 100Ah 2.5kWh
Connect with offgrid/hybrid inverter
Backup Battery
Lithium-ion Battery
3 Year Product Warranty
Description
The Lemoen 25.6V 100Ah 2.5kWh Battery is a reliable and efficient energy storage solution, designed to meet the demands of modern residential and commercial applications. Engineered with LiFePO4 (Lithium Iron Phosphate) technology, it offers enhanced safety, long-lasting performance, and exceptional power management. With its rack-mounted design, this battery integrates seamlessly with off-grid and hybrid inverters, making it an ideal choice for solar energy systems and backup power.
Features – Lemoen 25.6V 2.5kWh Battery
-
Advanced Lithium Iron Phosphate (LiFePO4) Technology
The Lemoen battery utilizes high-performance cells to ensure safety, efficiency, and a lifespan of over 3,000 cycles at 80% Depth of Discharge (DOD). -
Flexible Mounting Options
The rack-mounted or wall-mounted design offers versatility, saving space and enabling easy installation for various applications. -
High Power Output
With a nominal energy capacity of 2.5kWh, it supports up to 120A discharge currents, powering essential loads efficiently. -
Temperature Resilience
Operates seamlessly across a wide temperature range:- Charge: 0℃ to 65℃
- Discharge: -20℃ to 65℃
- Storage: -20℃ to 55℃
-
Durable Cycle Life
Achieves a calendar life of over 6 years and retains 80% capacity after 3,000 cycles, providing long-term reliability. -
Scalable Energy Storage
Designed for series or parallel connections, it supports flexible system configurations to meet expanding energy demands. -
Enhanced Safety Features
Certified with UL1642, IEC62619, CE, ROHS, and UN38.3, the Lemoen battery includes integrated safety mechanisms for overcharge, over-discharge, and short-circuit protection.
Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage (V) | 25.6V |
| Nominal Capacity (Ah) | 100Ah |
| Nominal Energy (kWh) | 2.5kWh |
| Standard Charge Voltage | 29.2V |
| Discharge Cut-Off Voltage | 20V |
| Max Charge/Discharge Current (A) | 120A |
| Cycle Life | ≥3,000 cycles @ 80% DOD |
| Dimensions (mm) | 484 x 420 x 133 |
| Weight (kg) | 27kg |
| Operating Temperature | 0℃–65℃ (Charge), -20℃–65℃ (Discharge) |
| Installation Method | Rack-mounted / Wall-mounted |
| Load Power | ≤3,000W |
Applications
- Solar Energy Storage: Efficiently store solar power for nighttime use or during grid outages.
- Backup Power Systems: Ensure uninterrupted power supply for critical loads.
- Off-Grid and Hybrid Inverters: Compatible with a wide range of inverter systems.
Warranties and Certifications
The Lemoen 25.6V 100Ah 2.5kWh Battery is backed by a 3-year product warranty. Installation must be performed by a qualified professional in compliance with industry standards to ensure safety and maintain warranty coverage. Certified to international safety standards, including CE, ROHS, MSDS, and UN38.3, this battery guarantees dependable performance.
Why Choose the Lemoen 2.5kWh Battery?
Investing in the Lemoen 25.6V 2.5kWh Battery means choosing reliability, efficiency, and safety. Whether for residential or commercial use, this battery is designed to power your energy needs with unparalleled performance.
