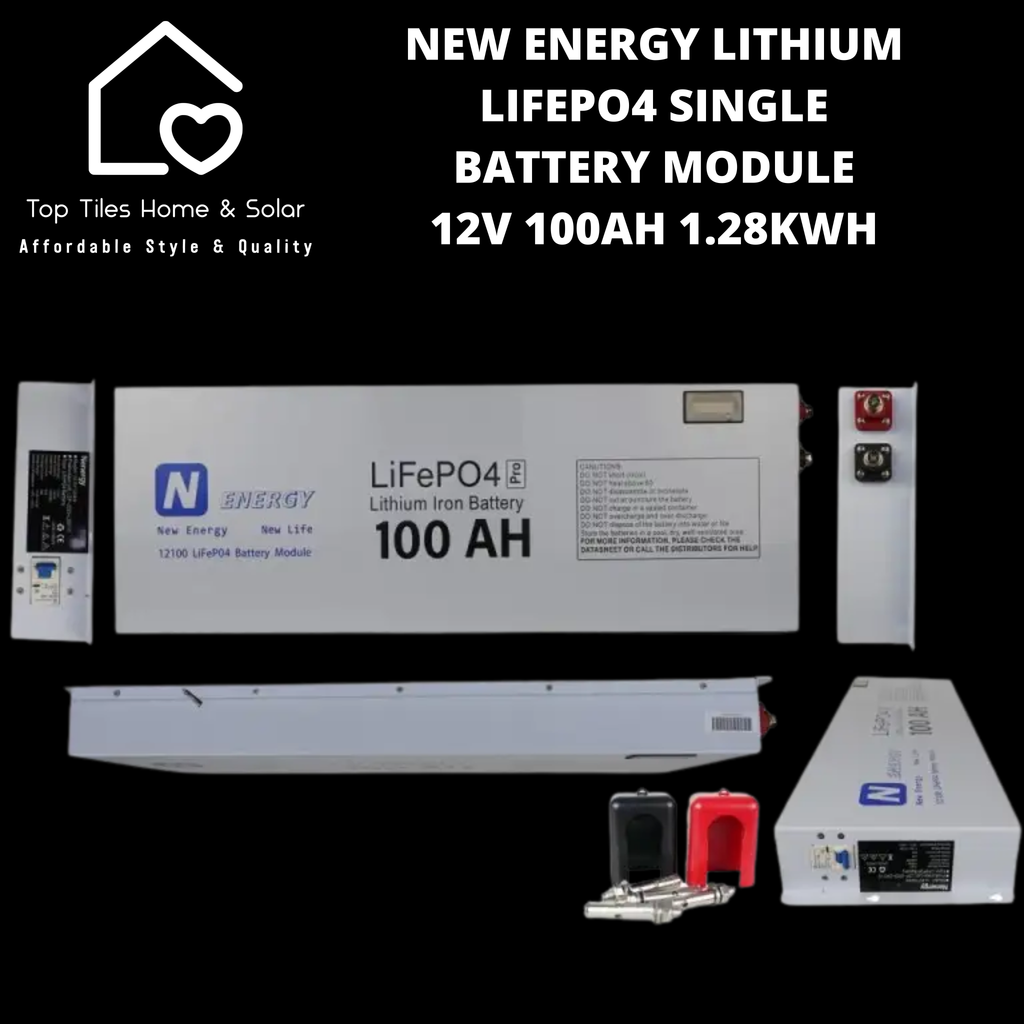

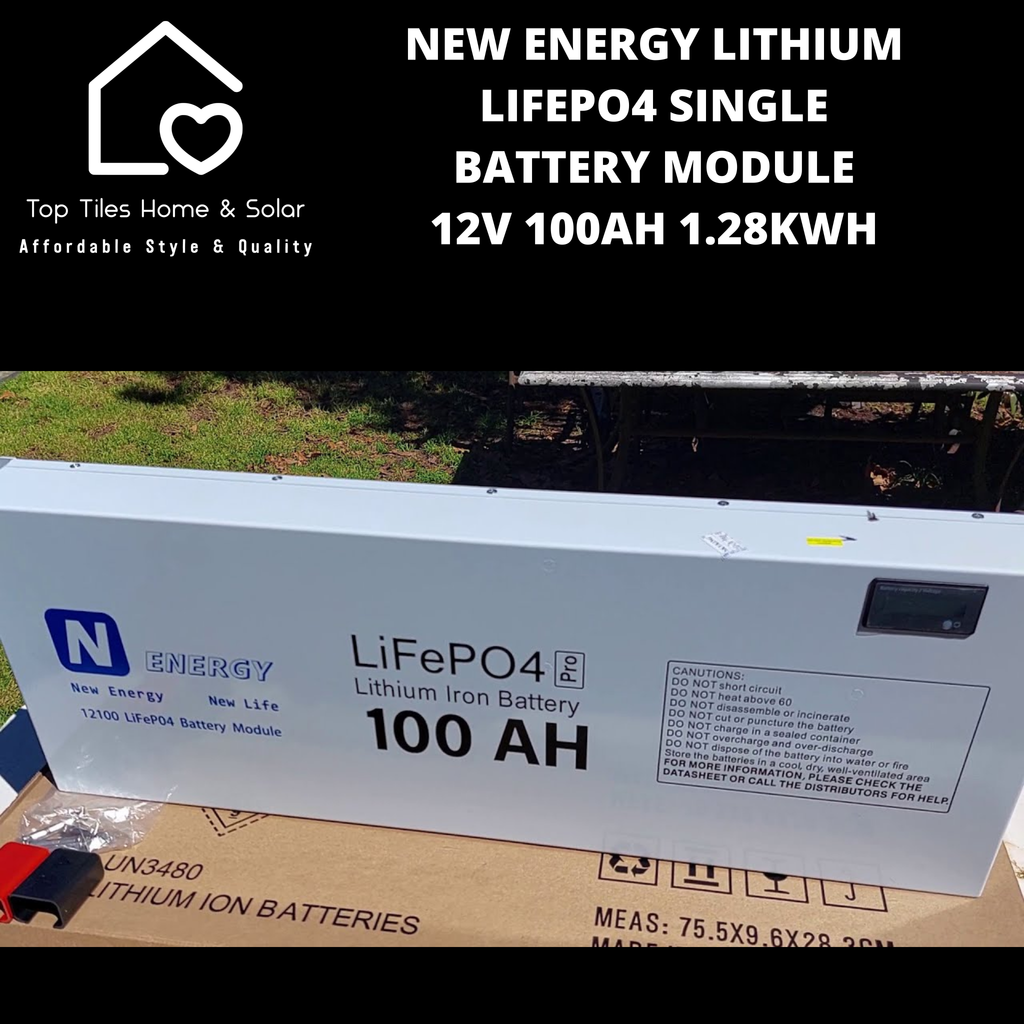

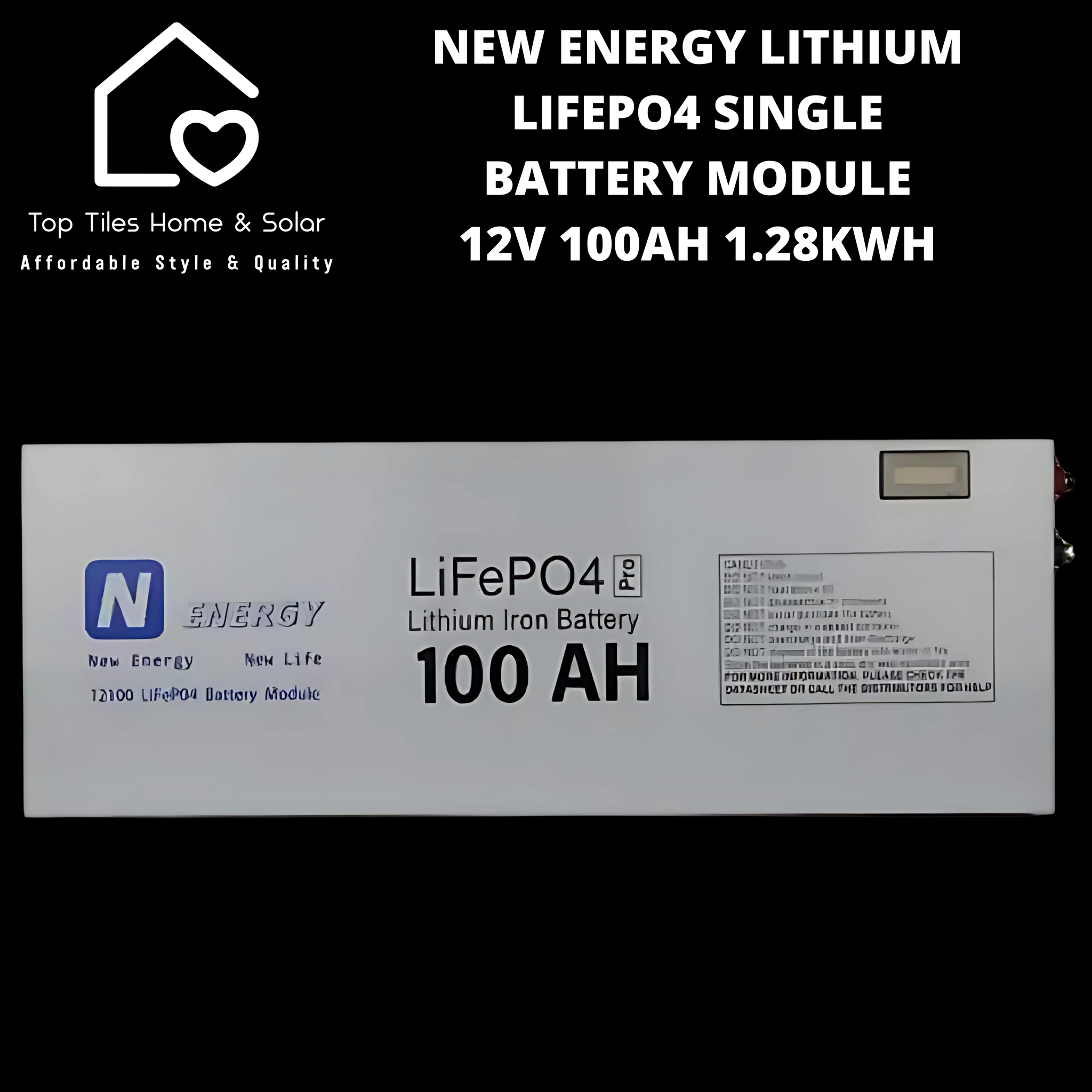

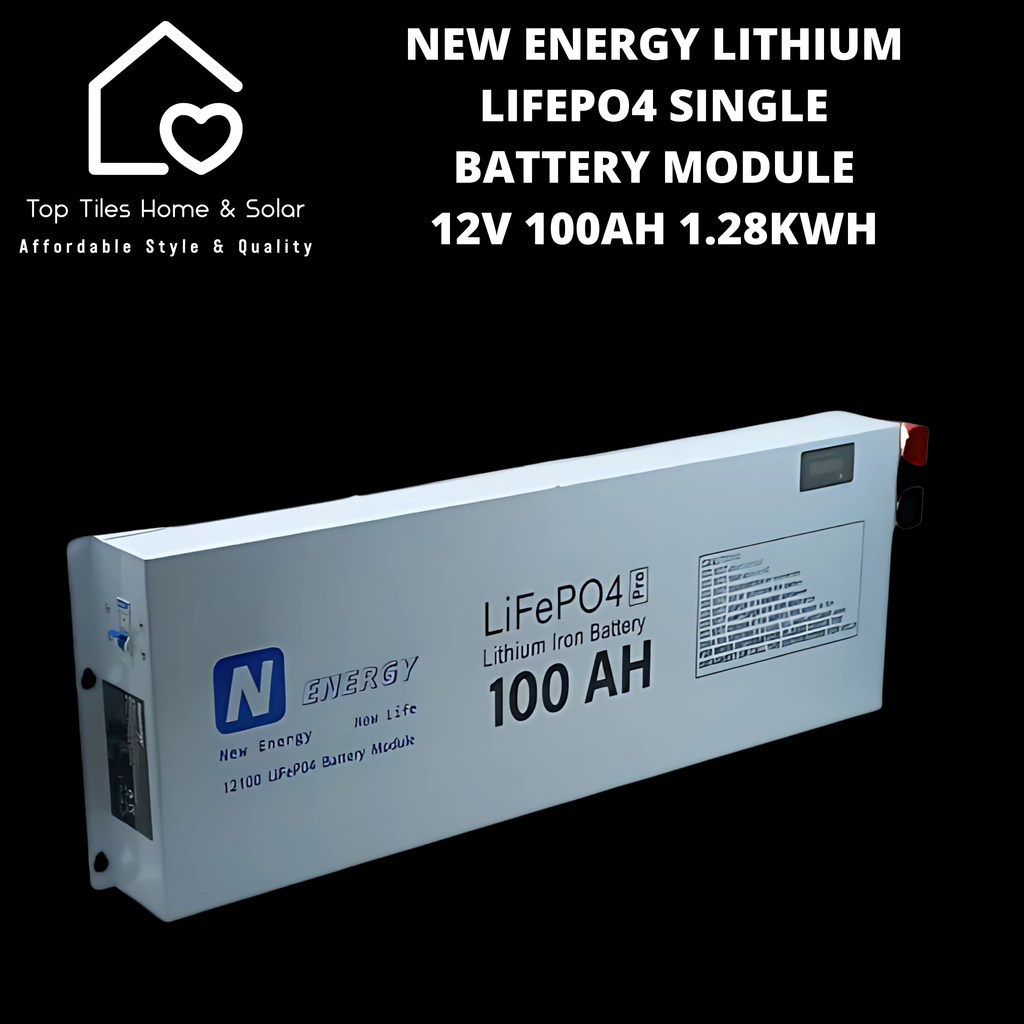

New Energy Lithium LiFePo4 Single Solar Battery Module - 12V 100Ah 1.28kWh

New Energy 12V 100Ah LiFePo4 Single Battery Module- Wall Mount Unit

Nominal Voltage 12.8V

Rated Capacity 100AH

Total Usable Energy 1.280KWh

Continuous Charging 20A

Continuous Discharging 50A

Working Voltage Range 11.6V-14.6V

Wall Mount  Unit Design To Work Perfectly With 12V Hybrid Invertors Up To 2KVA

Retail Box

1 Year Limited Warranty



Product Overview
The New Energy 12V 100Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM/Gel battery replacement.

This Wall Mountable standalone design Li-ion LiFePO4 battery with Total Usable Energy 1.280 kWh is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 2000 at 80% DOD.

Design To Work Perfectly with 12V Inverters Up To 2KVA.

Highlights
•Nenergy 12.8V 100Ah LiFePo4 Single Battery Module
•Wall Mount Installation Unit
•Nominal Voltage: 12.8V
•Working Voltage Range 12V
•Rated Capacity 100Ah
•Total Usable Energy 1.280 kWh
•Maximum Continuous Charging Current: 20A
•Maximum Continuous Discharging Current: 50A
•Working Voltage Range 116V-14.6V
•Built In Protection -Over-Charge, Over-Discharge, Over-Temperature



Specifications
•Stock Code SOLNE12V100AH
•Description Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module

Product Type Wall Mountable 12V 100Ah LiFePo4 Single Battery Module
•Rated Capacity 100Ah
•Nominal Voltage 12.8V
•Working Voltage Range 12V
•Maximum Continuous Charging Current: 20A
•Maximum Continuous Discharging Current: 50A
•Cells: New Li-Ion Prismatic Cells
•Design Life: -/+ 10 Years
•Cycle Life @ 1C: +/-1000 Cycles @ 100% DOD, Above 2000 cycles @ 80% DOD
•Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
•Dimensions (LxWxH): 72x7x25cm
•Weight: Approx.9.5kg
