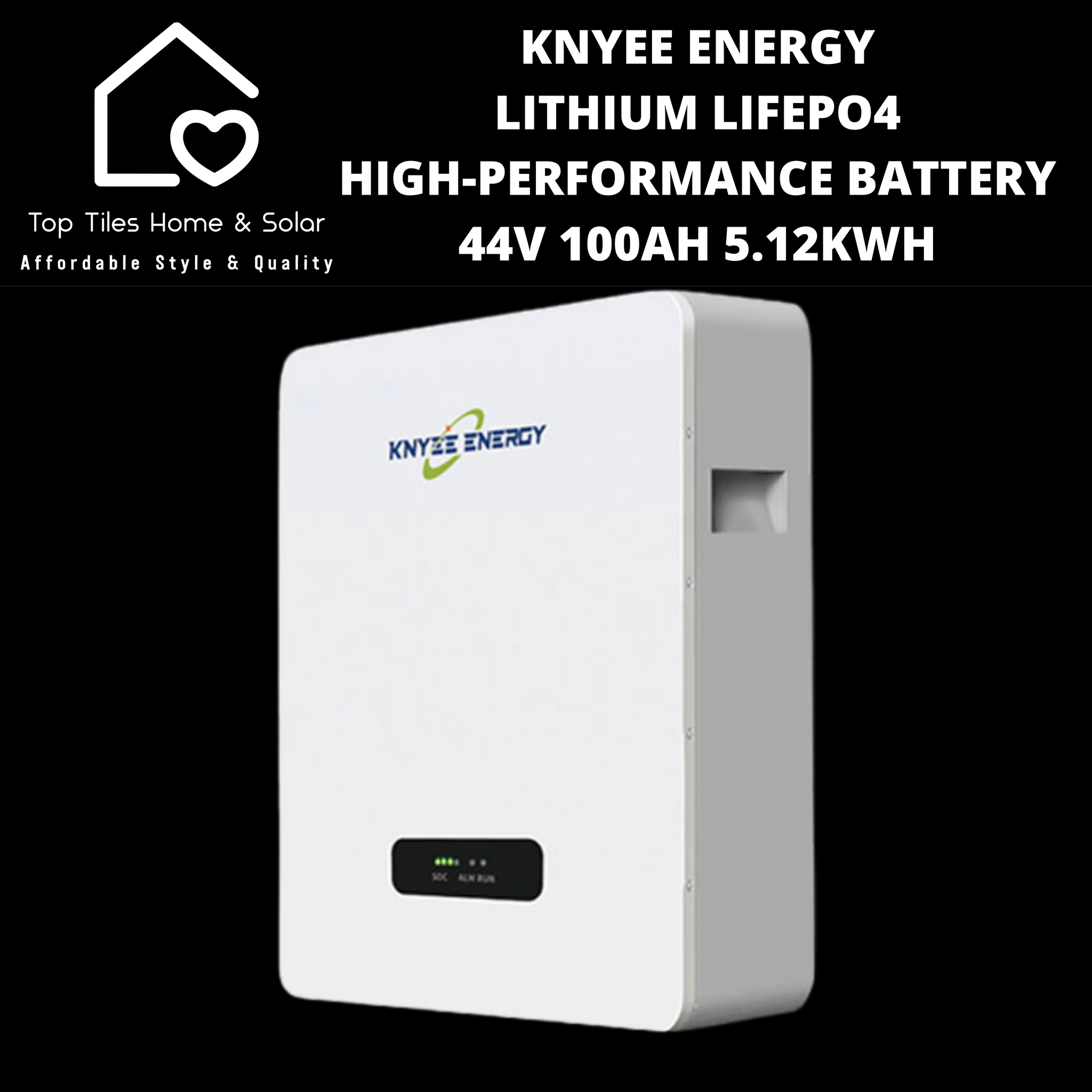

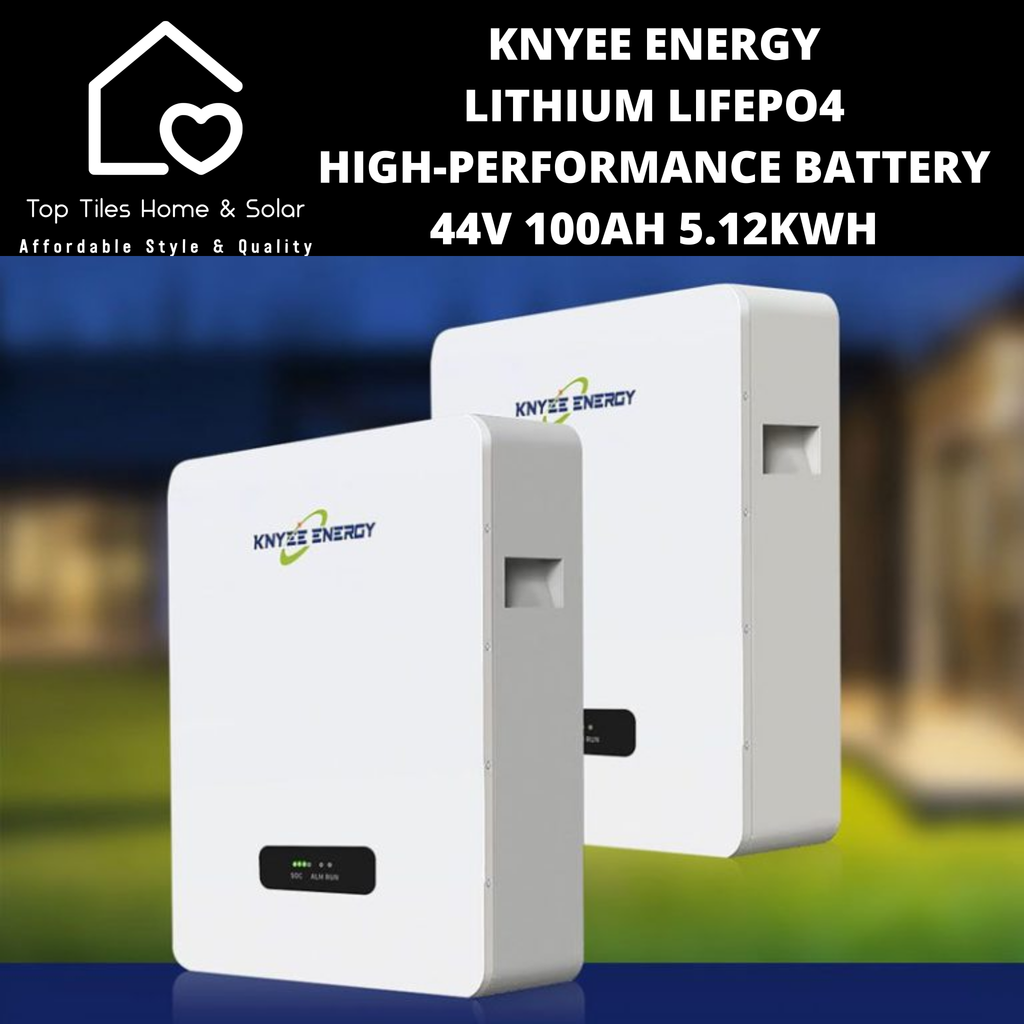

Knyee Energy Lithium LiFePo4 High-Performance Solar Battery - 44V 100Ah 5.12kWh

Knyee Energy Lithium LiFePo4 High-Performance Battery - 44V 100Ah 5.12kWh

Key Features of the Knyee Energy 5.1kWh Battery:

• Compact and Space-Efficient: The Knyee Energy 5.1kWh Battery’s sleek design allows for wall-mounted installation, making it a perfect fit for spaces where every inch counts.
• Enhanced Safety: Utilizing high-density LiFePO4 cells, this battery offers superior safety compared to traditional battery technologies, ensuring reliable performance and peace of mind.
• Extended Battery Life: With a remarkable lifespan of up to 6000 cycles at an 80% Depth of Discharge (DoD), the Knyee Energy 5.1kWh Battery provides long-term value and durability.
• Plug-and-Play Installation: Installation is straightforward with our plug-and-play system, allowing for quick and hassle-free setup.
• Advanced BMS Management: The integrated Battery Management System (BMS) ensures optimal stability and reliability, enhancing the overall performance and safety of your energy storage system.
• Wide Compatibility: The Knyee Energy 5.1kWh Battery is compatible with a range of popular inverters, including brands such as Sunsynk, Deye, Luxpower, Growatt, SRNE, Megarevo, Solis, Sofar, and more.

Knyee Energy 5.1kWh Battery Specifications:

Basic Information

• Nominal Voltage: 51.2V DC
• Voltage Range: 44V – 58.4V
• Nominal Capacity: 100Ah
• Rated Capacity: 5.12kWh
• Communication Protocol: CAN / RS485 / RS232
• Maximum Number of Parallel Connections: 15
• Cycle Life: 6000 cycles (@80% Depth of Discharge)
• Protection Mechanisms:
  • Temperature Protection
  • Over-current Protection
  • Short-circuit Protection
  • Over-charge Protection
  • Over-discharge Protection
  • Low-voltage Protection

Charging Parameters

• Recommended Charging Current: 50A
• Maximum Charging Current: 100A
• Recommended Charging Voltage: 58V
• Maximum Charging Voltage: 58.4V

Discharging Parameters

• Recommended Discharging Current: 50A
• Maximum Discharging Current: 100A
• Recommended Battery Discharge Cut-off Voltage: 44V
• Battery Cut-off Voltage: 43.2V
• Battery Recovery Voltage: 48V

General Parameters

• Packaging/Product Size: 640 x 540 x 270 mm / 580 x 480 x 160 mm
• Gross/Net Weight: 56.5 kg / 50 kg
• Shell Material: Sheet Metal
• Protection Rating: IP20
• Installation Method: Wall Mounted
• Cell Type: LiFePO4

Certification & Safety Standards

• Safety Certification: CE
• Temperature Safety Certification: UN38.3, Class 9

Temperature Parameters

• • Discharging Temperature: -20°C to 65°C
  • Charging Temperature: 0°C to 55°C
  • Storage Temperature: -20°C to 45°C
