JBL Home Cinema Soundbar System 3.1CH - 250W

JBL Home Cinema Soundbar System 3.1CH - 250W

Step up your sound with the 3.1 channel JBL Cinema soundbar packing 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25″ subwoofer will make everything you watch more exciting.

A dedicated center channel means TV and film dialogue always sounds crystal clear. The setup is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favourite streaming music and podcasts from any device.

Features and Benefits

Dedicated center channel provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with
amazing clarity. You’ll never ask “What did they just say?”
again.

250W power output
Incredible, powerful sound for an immersive cinematic
experience.

Wireless subwoofer for extra deep bass
Enjoy deep and thrilling bass and clutter-free experience.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest
setup and a hassle-free user experience.

Wireless music streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile
device.

Dolby Audio embedded
Delivers powerful sound that enhances any movie
experience.

Technical Specifications

General Specifications

• Sound system: 3.1 channel
• Power supply: 100 – 240V AC, ~ 50/60Hz
• Total speaker power output (Max @THD 1%): 250W
• Soundbar output power (Max @THD 1%): 150W
• Subwoofer output power (Max. @THD 1%): 100W
• Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
• Subwoofer transducer: 5.25″ (133mm), wireless subwoofer
• Standby power: < 0.5 W
• Operating temperature: 0 C – 45 C
• HDMI Specification
• HDMI ARC (Audio Return Channel): 1
• HDMI HDCP version: 1.4
• Audio Specification
• Frequency response: 45Hz-20kHz (-10dB)
• Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB Specification

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supporting file formats: mp3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 – 48 kHz
• MP3 bitrate: MPEG 1 Layer 1: 32 kbps – 448 kbps; MPEG 1 Layer 2: 32 kbps – 384 kbps; MPEG 1 Layer 3: 32 kbps – 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps -256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps – 160 kbps

Wireless Specification

• Bluetooth version: 5.3
• Bluetooth profile: A2DP 1.3, AVRCP 1.6
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth Max. transmitting power: Bluetooth modulation: GFSK, /4 DQPSK, 8DPSK
• 2.4G wireless transmitter frequency range: 2402-2481 MHz
• 2.4G wireless transmitter power: 2.4G wireless modulation: GFSK

Dimensions

• Soundbar dimensions (W x H x D): 950 x 64 x 80 mm / 37.4” x 2.5” x 3.1”
• Subwoofer dimensions (W x H x D): 200 x 324 x 250 mm / 7.9″ x 12.8″ x 9.9″
• Soundbar weight: 2.5kg / 5.5 lbs
• Subwoofer weight: 4.2 kg / 9.3 lbs
• Packaging dimensions (W x H x D): 1025 x 235 x 397mm / 40.4″ x 9.3″ x 15.6″
• Packaging Weight: 8.8kg / 19.4 lb

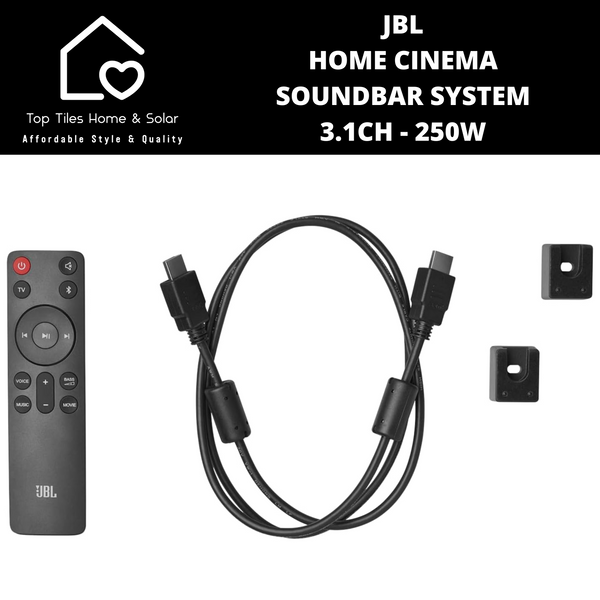

What’s in the box

• Soundbar
• Wireless subwoofer
• Remote control with batteries
• Power cords (up to 8pcs depending on region SKUs)
• HDMI cable
• Wall-mount bracket kit with screws
• Quick start guide
• Warranty card
• Safety sheet
