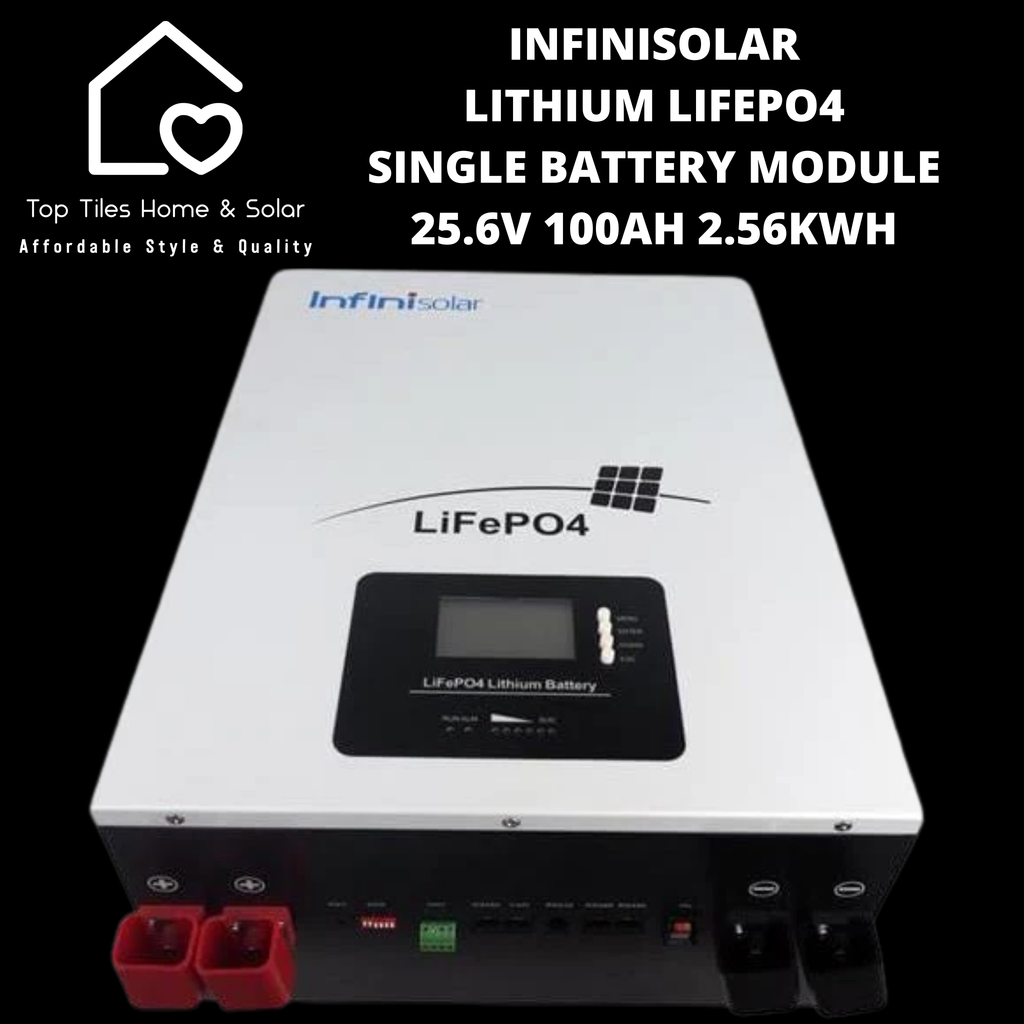

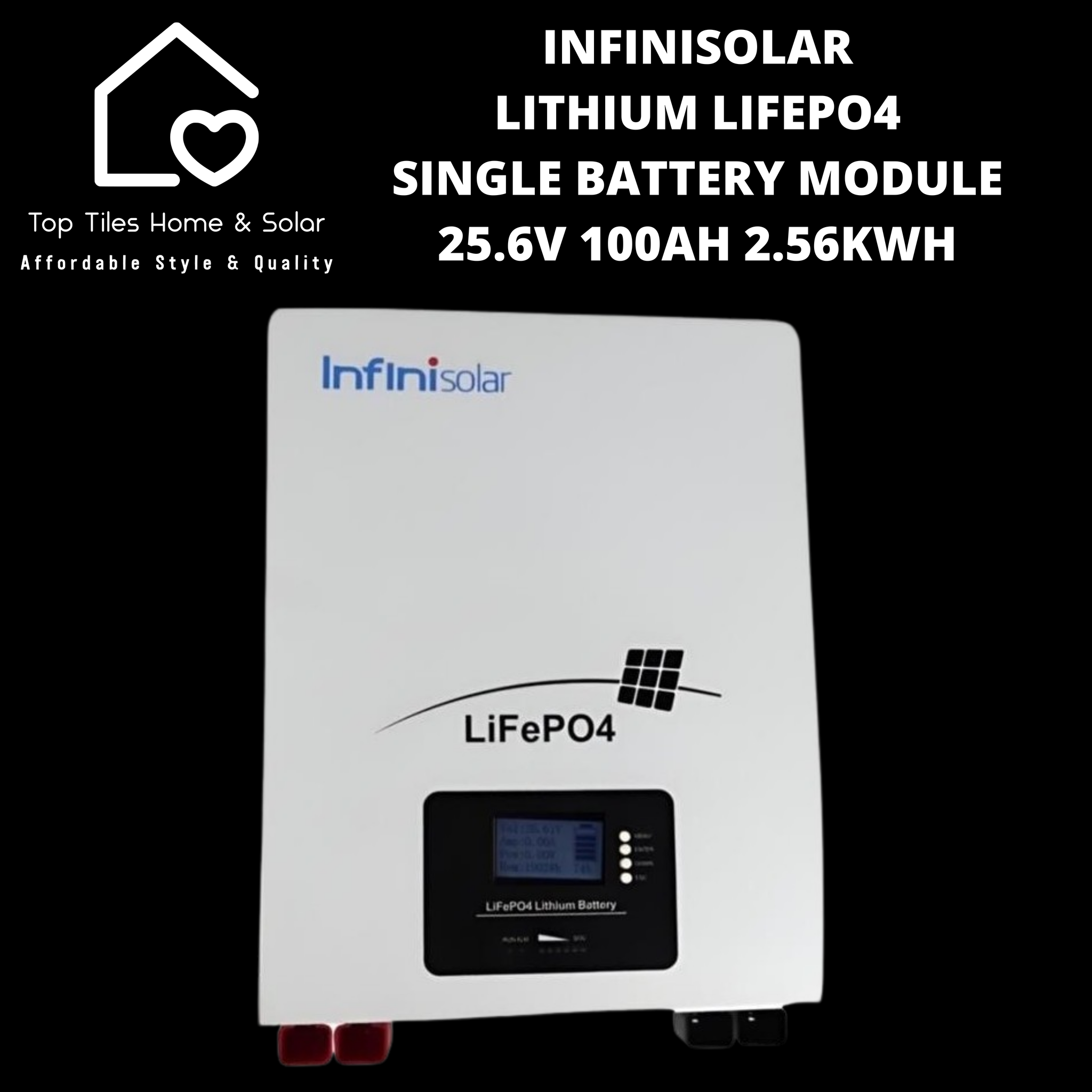

InfiniSolar Lithium LiFePo4 Single Solar Battery Module - 25.6V 100Ah 2.56kWh
Regular price
R11,799.00
Shipping calculated at checkout.
InfiniSolar Lithium LiFePo4 Single Battery Module - 25.6V 100Ah 2.56kWh
Infinisolar 25.6V 100Ah Lifepo4 Single Battery Module
Total Usable Energy 2.56KWh
Normal Voltage: 25.6V
Rated Capacity (5HR): 100 Ah
Voltage Range 22.0V to 29.2V
LCD Display and Battery Level Indicator
Continuous Charging Current: 100A
Continuous Discharging Current: 100A
Low Self-Discharge
Wall Mount Unit, Parallel Up to 15 units
Work Perfectly Hybrid Inverters Up To 3.5KVA 24V
Colour White
Retail Box
3 Year Limited Warranty
Product Overview
The Must ( InfiniSolar Branded ) 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance.
Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard Wall Mount Design or easy installation and maintenance.
The Must ( InfiniSolar Branded ) 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance.
Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard Wall Mount Design or easy installation and maintenance.
Features
• Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life Up to 6000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 22.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A
• Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life Up to 6000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 22.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A
• LCD Display and Battery Level Indicator
• Communication CAN Bus 2.0, RS232 and RS485
• Parallel Up to 15 units
• Wall Mount Chassis
• Communication CAN Bus 2.0, RS232 and RS485
• Parallel Up to 15 units
• Wall Mount Chassis
Specifications
•Stock Code SOLLP1624100
•Description Solarix Infinisolar Branded 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery
•Rated Capacity (5HR): 100Ah.
•Voltage: 25.6V.
•Total Usable Energy 2.56KWh
•Discharge Cut-off Voltage: 22.0V.
•Equalised Charge Voltage: 29.2V.
•Floating Voltage 26.4V -27.2V
•Bulk Voltage 27.6V -28.4V
•Maximum Continuous Charging Current: 100A.
•Maximum Continuous Discharging Current: 100A.
•Display: LCD Panel and Battery Level Indicator

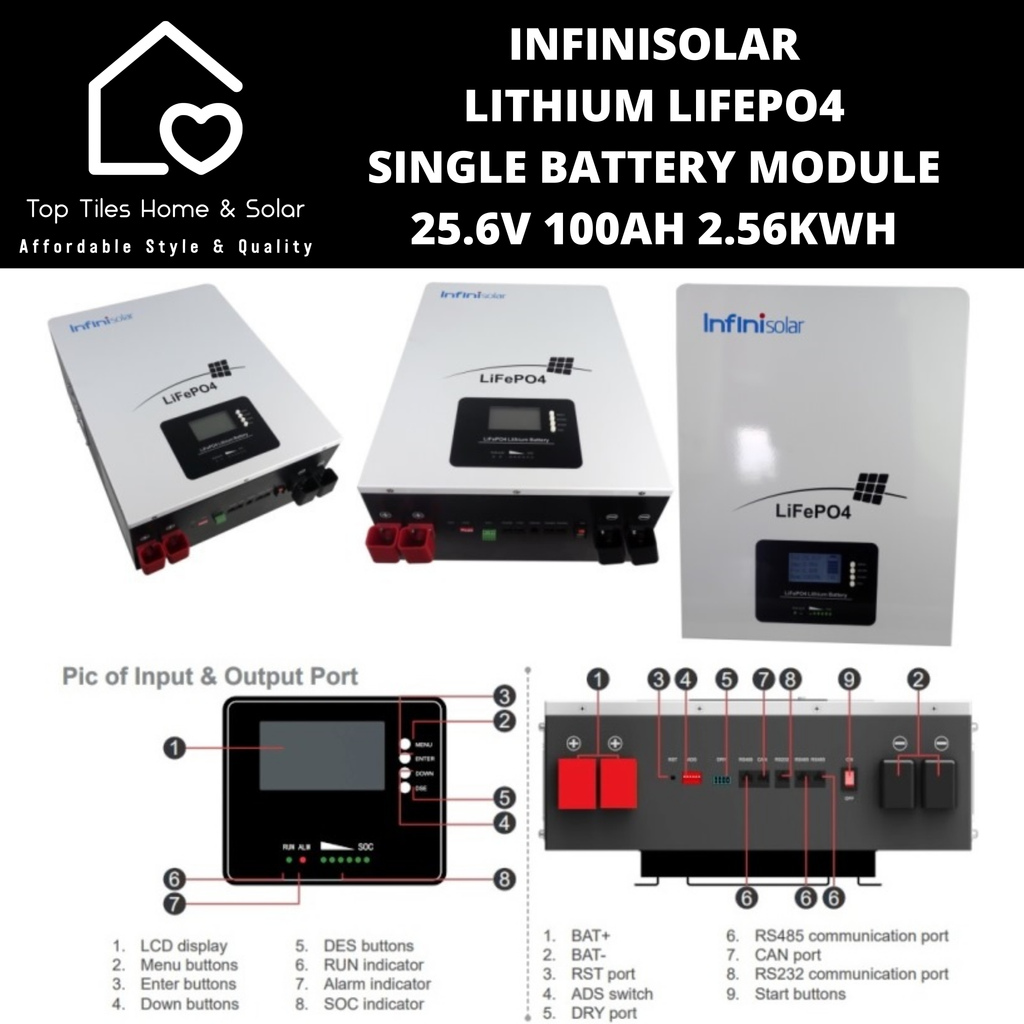

•Ports: 2x Positive Socket, 2x Negative Socket, 1x Power switch.
•Design Life: -/+ 10 Years.
•Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Up to 6000 cycles @ 80% DOD.
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
•Dimensions (WxDxH): 450mm x 442mm x 140mm.
•Weight: Approx. 23kg
