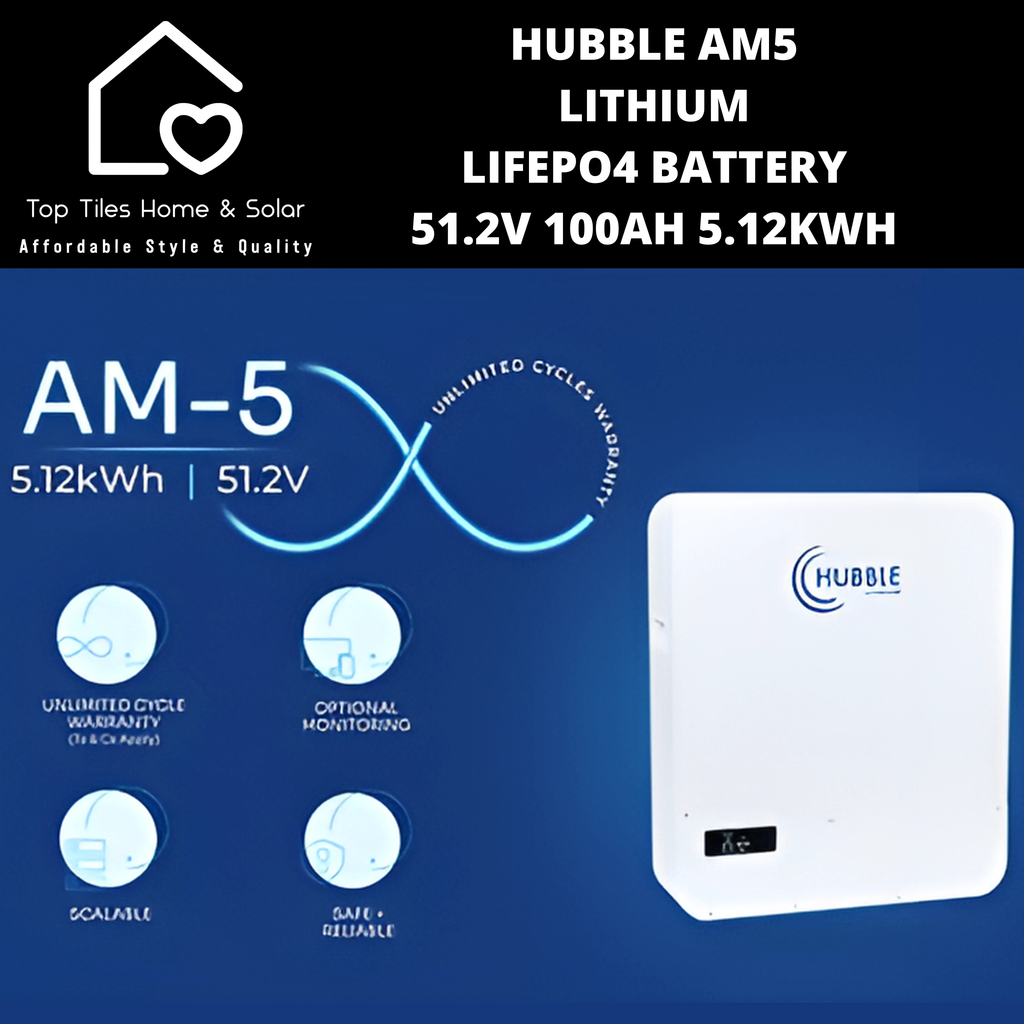

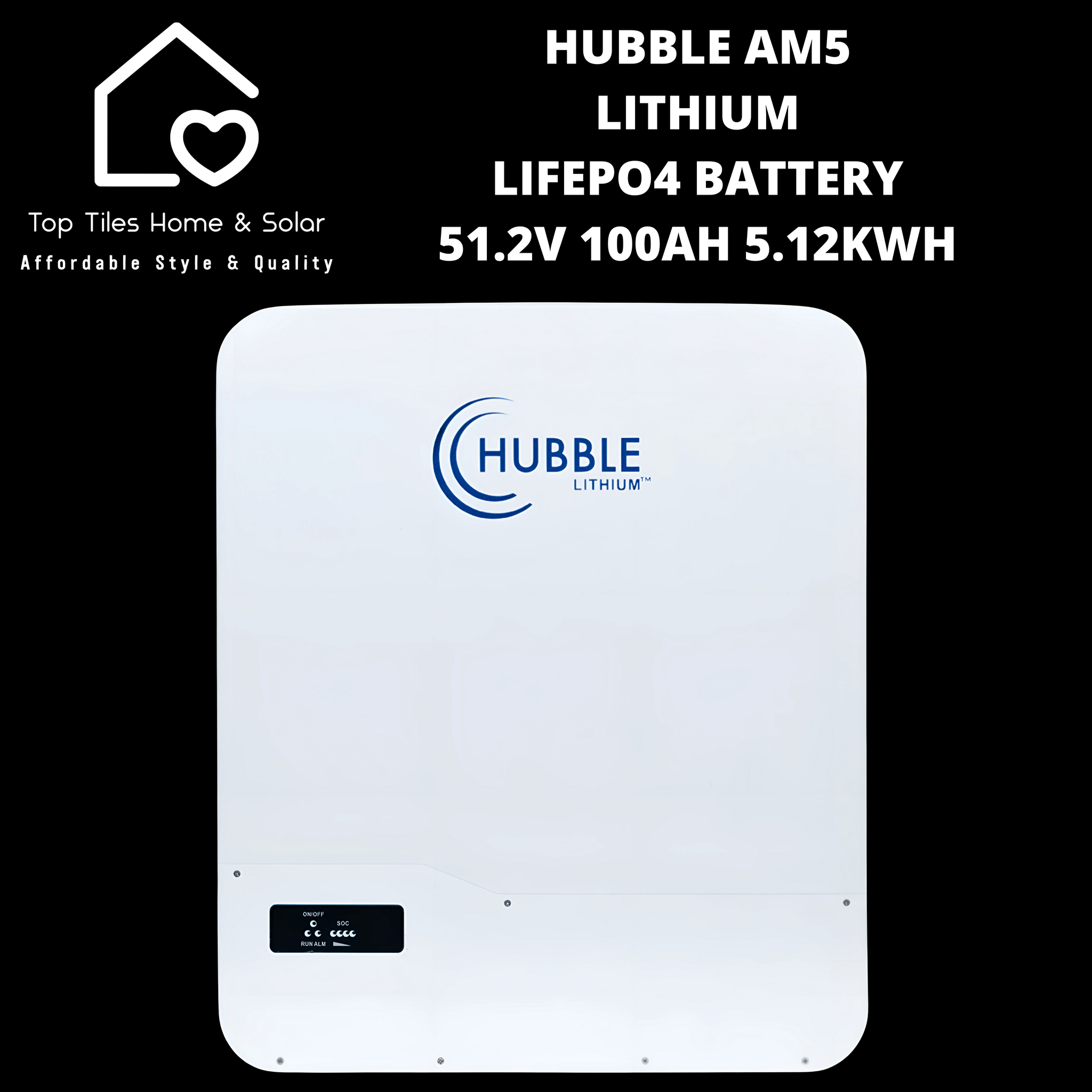

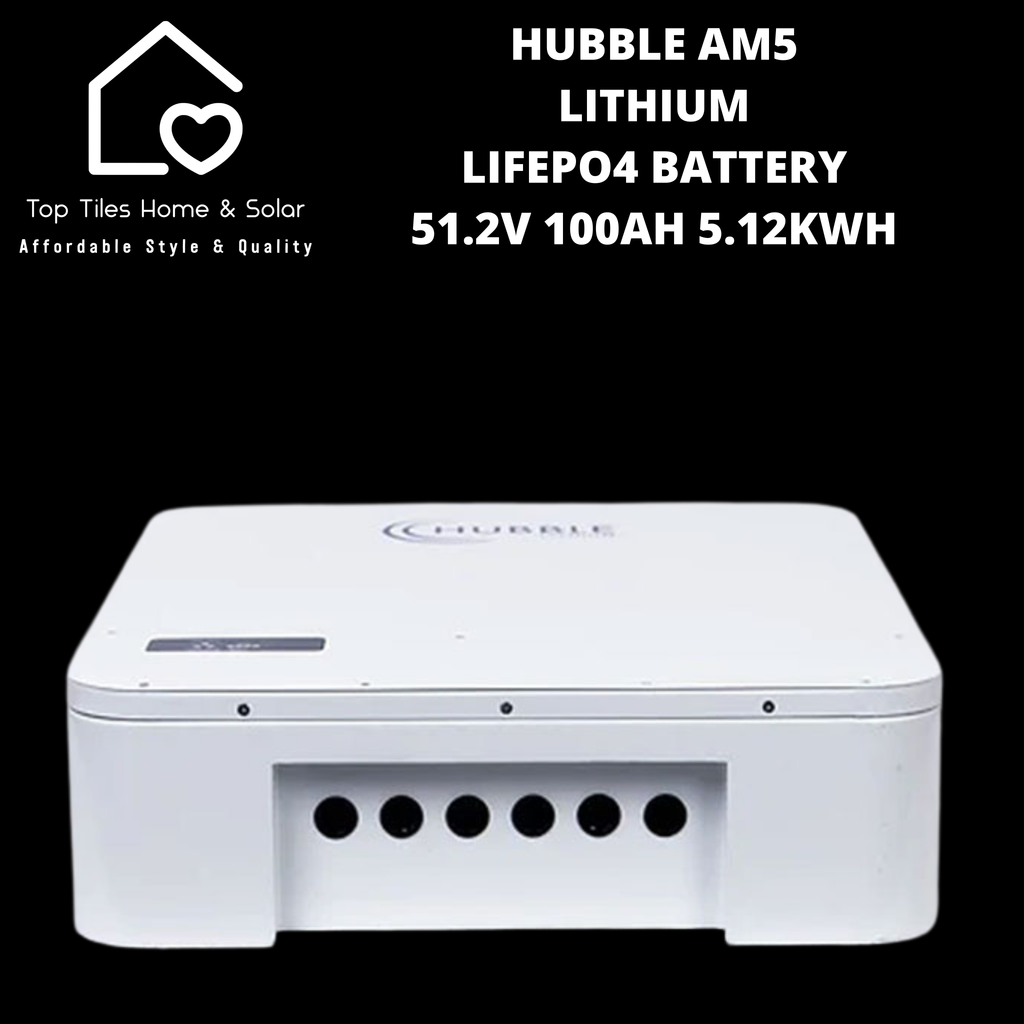

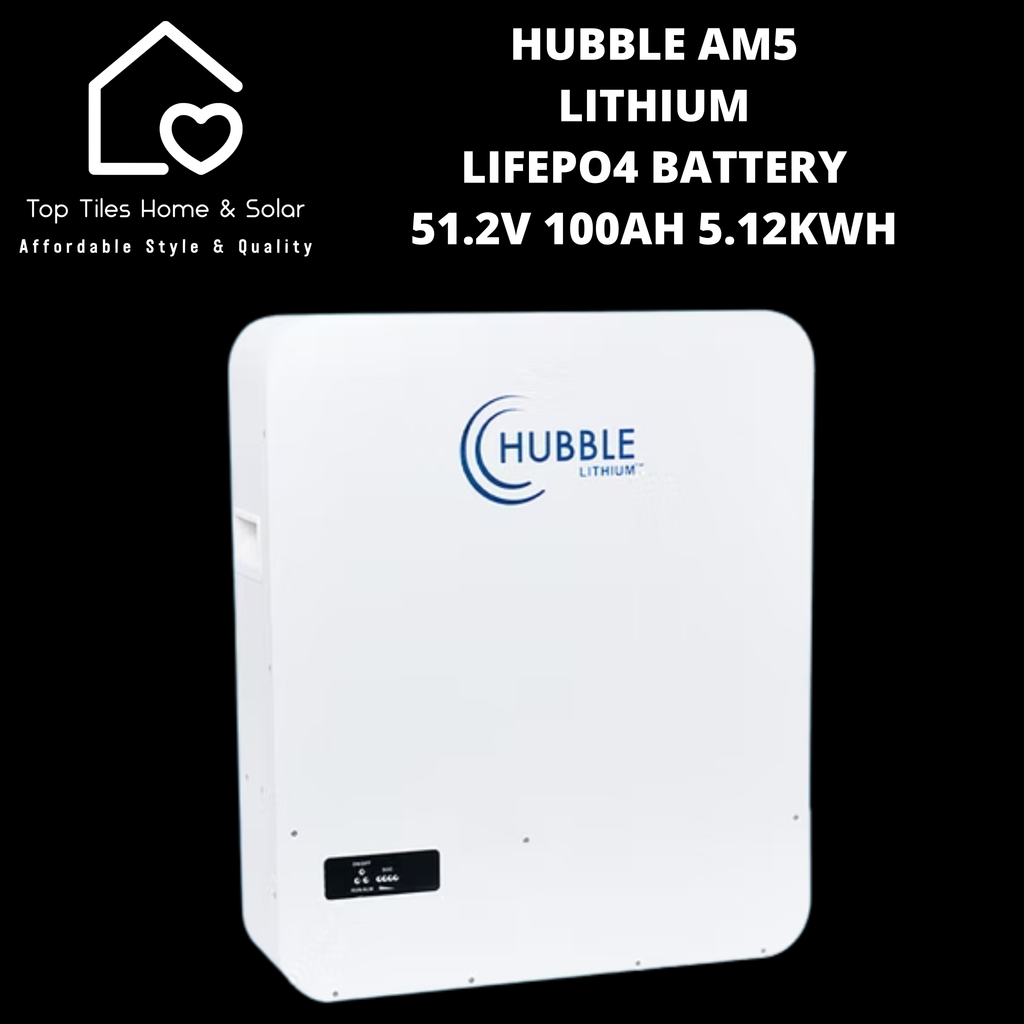

Hubble Lithium LiFePo4 Solar Battery - 51.2V 100Ah 5.12kWh
Regular price
R18,999.00
Shipping calculated at checkout.
Hubble Lithium LiFePo4 Battery - 51.2V 100Ah 5.12kWh
Hubble 5.1kwh AM5 Battery
The AM-5 is the first of its series to have LFP prismatic cells, featuring a 5.12kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink.
- Specification: 51.2V 5.12KWh
- Rating: 1C
- Parallel: up to 8 packs with full communications
- Extras: Battery Link, rawl bolts, and wall bracket
- CAN Bus: Yes
- Hubble Cloudlink Ready: Yes
Hubble Lithium Battery Wall Mount 51.2V 5.12kWh 100Ah AM-5
Hubble Lithium’s AM5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion (LFP) cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.
FEATURES
- Low self-discharge
- High cycle and Service Life
- 1C High-performance lithium battery
- Easy wall mount or shelf rack installation
- Excellent high-temperature performance
- Advanced BMS with current limiting function
- Compatible with most inverters and chargers
- High energy density and conversion efficiency
- Complete with an integrated Battery Management System
- Hubble Cloudlink integration ready for cloud monitoring
- Heavy-duty side handles for easy handling and mounting on the wall
- Built-in protection for over-charge, over-discharge & over-temperature
CAN Bus, fully integrates and communicates with leading Inverter brands
- Rated Capacity (5HR): 100Ah
- Nominal Voltage: 51.2V
- Design Capacity: 5.12KWH
- Equalized Charge Voltage: 55.2V
- Max. Continuous Charging Current: 100A
- Max. Continuous Discharging Current: 100A
- C Rating: 1C
- Hubble Battery AM-5 Weight: Approx. 51kg
- Monitoring: Cloudlink
- Parallel: Parallel connection up to 8 packs with full communications
- Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm
- Ports: CAN-bus, Battery Link Ports
- Cells: Prismatic LiFePO4
- Design Life: ± 15 Years
- Certification: CE IEC UN38.3
- Outer Package Material: White Bake Lacquer Steel Case
- Operating Temperature
- Charging: -10°C to +50 °C
- Humidity: 15% to 75%
- Storage: 10°C to +50°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Is Hubble AM5 a LiFePO4 battery?
The AM-5 is the first of its series to have LFP prismatic cells, featuring a 5.12kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink. The Hubble AM-5 LiFePO4 Battery – (5.12kWh) has the following unique features: Low self-discharge.
What is the lifespan of a Hubble Lithium battery?
10 years
The Hubble has a 20-year intended design life, however, Hubble Lithium warrants that the Hubble will achieve at least 10 years’ service life or deliver at least 3500 charge, discharge cycles at 90% depth of discharge, whichever event is achieved first.
