Specifications
| Model | WF3S1043BT |
| Exported Model | WF3S1114-LVT002 |
| Factory Model | WF3S1114-LVT002 |
| Product Series | 3S |
| Product Platform | 66L |
| Product Color | Titanium Grey |
| Control Pnanel Language | Eng |
| Power Cord | SA Three Pins |
| Inlet hose | Standard Euro Inlet |
| Double Inlet/Single Inlet | Single Inlet |
| Inlet Position | Rear |

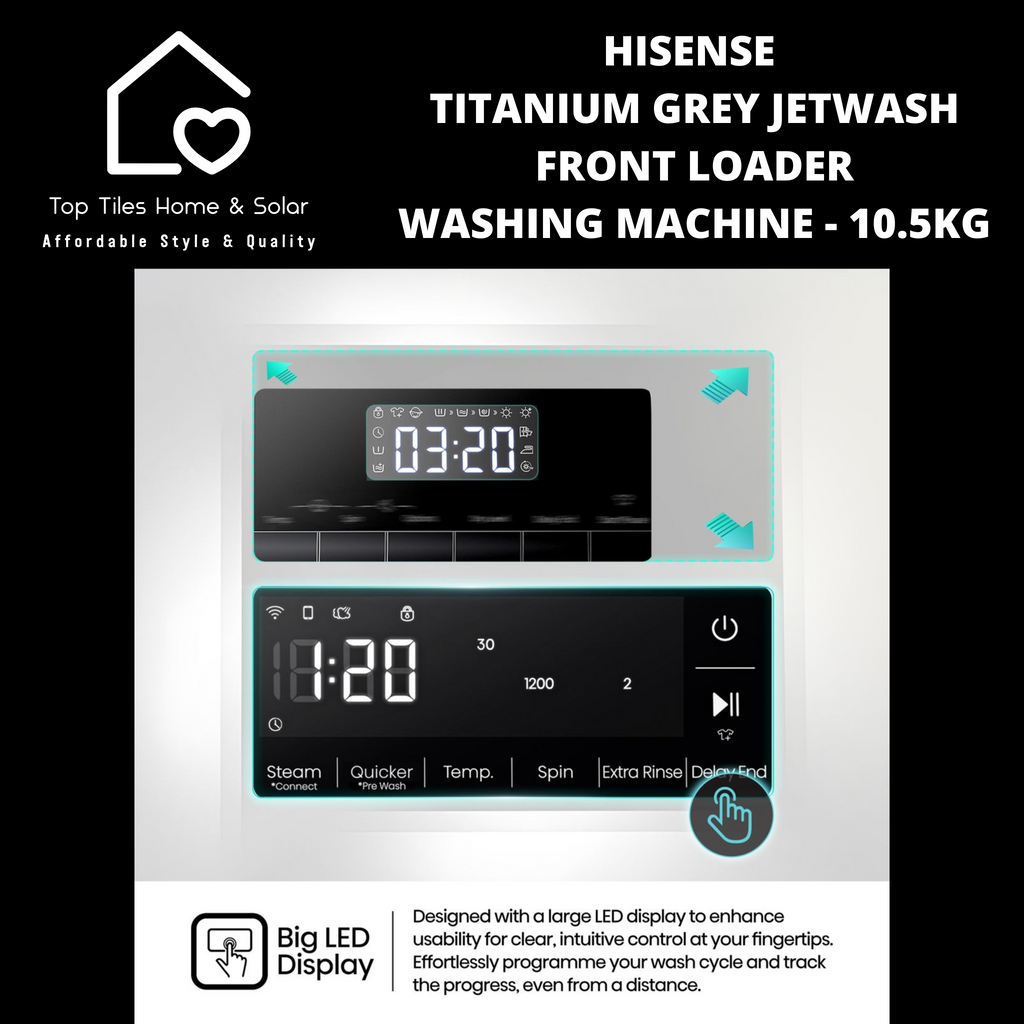

| Display（Digital，Indicator） | LED |
| Built in/Free standing | Free Standing |
| Water Pressure (Mpa) | 0.1-1 |
| Supply Voltage (V/Hz) | 220V~240V/50Hz |
| Washing capacity (KG) | 10.5kg |
| Spin capacity (KG) | 10.5kg |
| Drying capacity (KG) | 0 |
| Temperature Option (℃) | —/20/30/40/60/90 |
| Spin Speed Option.(rpm) | 1400 |
| Drum Volum（L） | 66L |
| Door lock type(PTC/ Electronic) | Electronic |
| Drain Pump | Yes |
| Water Sensor/Water Switch | Water Sensor |
| 0 water Presure | No |
| Tub/Drum Material | Plastic/Stainless Steel |
| Product Outlook | |
| Cabinet Colour | Titamium Grey |
| Cabinet Material and Finish | PCM Colour Panel |
| Front Panle Colour | Titanium Grey |
| Front Panle Material and Finish | PCM Colour Panel |
| Front panel Decoration | No |
| Door Ring Colour | Black |
| Door Ring Type | One Piece |
| Porthole Diameter（mm） | 340 |
| Drum ribe type and shape | Split |
| Door Diameter（mm） | 520 |
| Door Open（°） | 135° |

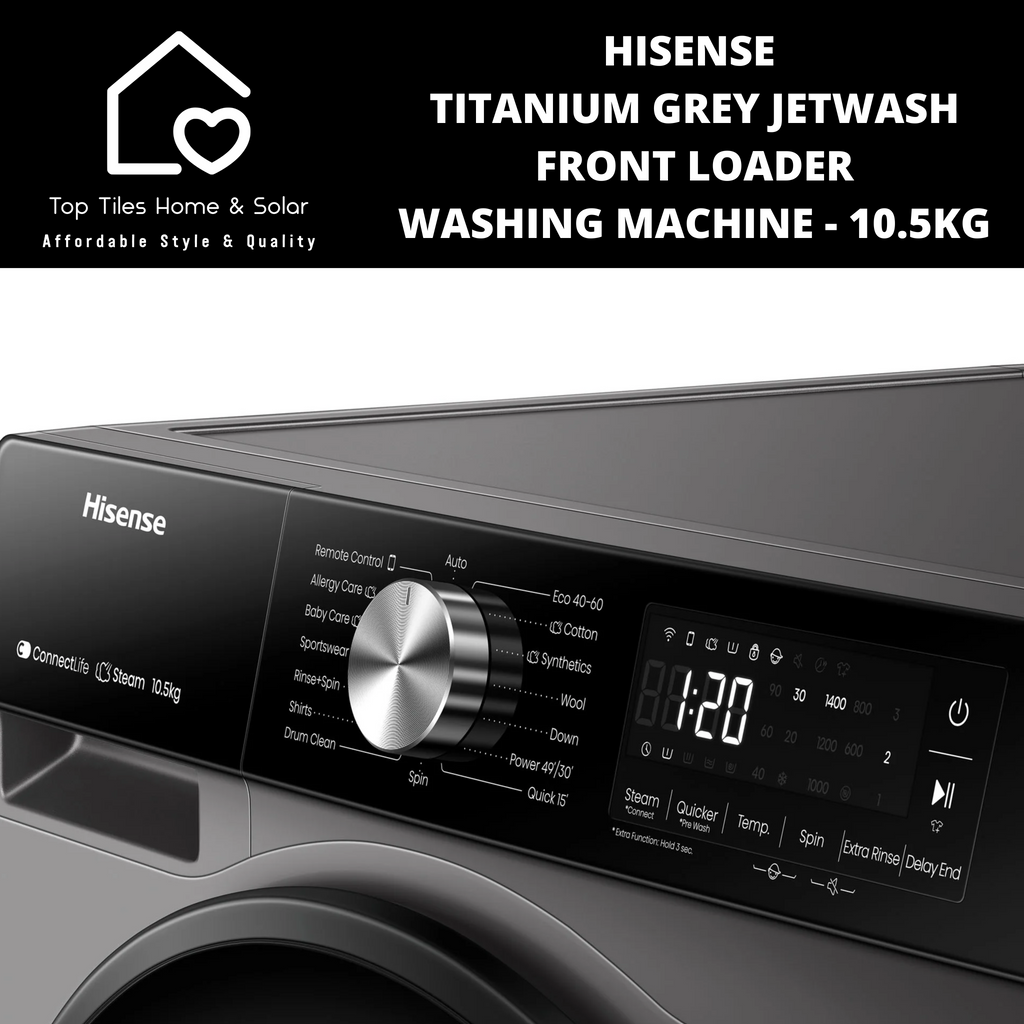

| Control Panel Colour | Titanium Grey + Black botton |
| ON/Off button Colour | / |
| ON/Off button Type | Touch Botton |
| Function Buttons quantity | 6 |
| Function Buttons Type | Touch Botton |
| Function Buttons Colour | Black |
| PCB Type | 3S |
| Programer Type | Absolute Value |
| Programer Inllumination | No Applicable |
| Display Color | White |
| Display position | right |
| Silk prink requirement | Based on UI Design |
| Programs | |
| Number Programs | 16 |
| Eco 40-60 | yes |
| Cotton | yes |
| Synthetics | yes |
| Wool | yes |
| Down | yes |
| Power 49’ | yes |
| Quick 15’ | yes |
| Auto | yes |
| Remote Control | yes |
| Allergy Care | yes |
| Baby Care | yes |
| Sportswear | yes |
| Rinse+Spin | yes |
| Shirts | yes |
| Drum Clean | yes |
| Spin | yes |
| Mix | × |
| Steam Refresh | × |
| Quick 15’/Wash&Dry 60’ | × |
| Cotton Dry | × |
| Synthetics Dry | × |
| Silk/Delicate | × |
| Jeans | × |
| Features | |
| Memory Backup | yes |
| Inverter | yes |
| Jet Wash | yes |
| Power Jet Wash | × |
| Snowflake Drum | × |
| yes | |
| wifi | yes |
| Pause & Add | yes |
| Refresh | × |
| Steam | yes |
| PureSteam | × |
| Auto Dosing | × |
| Child Lock | yes |
| Favourite | × |
| Delay End/Delay Start | yes |
| Soil Level | × |
| Load Detection | yes |
| Ag+ | × |
| Drum Illumination | × |
| Soil Detection | × |
| Performance | |
| Cerficate | CE；CB；EMC；ERP；RED；COC；ICASA |
| REACH/ROHS//PAHs/Phthalates | RoHS+REACH+PAHs+Phthalates |
| Energy Rating （Wash） | A(New Euro)；A+++（Old Euro） |
| Energy Rating（Dry） | / |
| Water Rating | / |
| Spin Drying Performance Class | B |
| Noise Level | A |
| Noise | 57/72dB（A） |

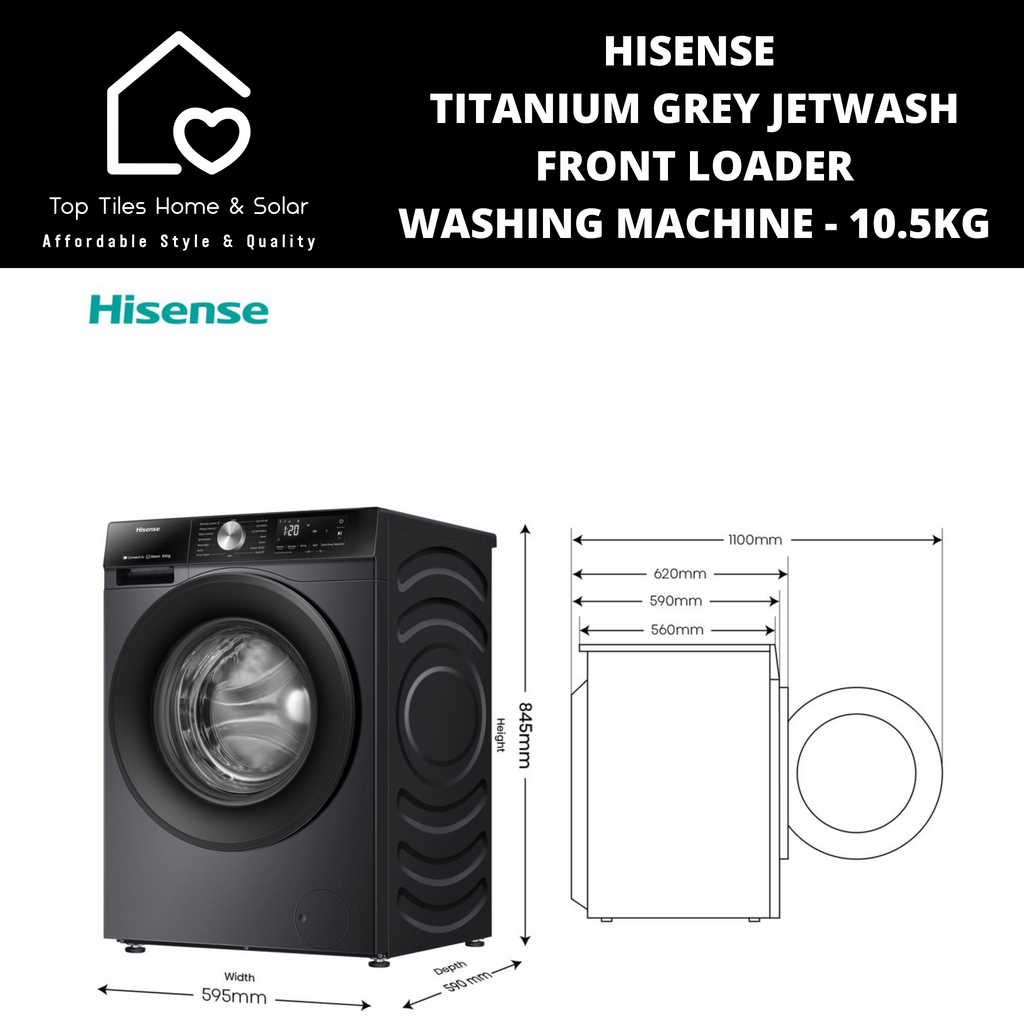

| Net Dimensions WxDxH (mm) | 595×610×845 |
| Packing Dimensions （Carton ） WxDxH (mm) | / |
| Packing Dimensions (Shrink Film) WxDxH (mm) | 650×660×885 |
