Dolby Audio enhances your viewing experience with clear, powerful sound that’s optimized for each scene. Whether it’s dialogue, music, or special effects, Dolby Audio ensures that you hear every detail with stunning clarity.
QLED
QLED (Quantum Dot LED) technology uses Quantum Dots to produce brighter and more accurate colors. With deeper blacks and vibrant hues, QLED TVs offer a superior viewing experience with enhanced color reproduction and brightness.
AI 4K Upscaler
The AI 4K Upscaler uses advanced AI algorithms to enhance lower-resolution content to near-4K quality. This feature ensures that everything you watch, from TV shows to movies, is displayed with stunning clarity and detail.
Product
Specification
Value
Commercial model
43E7Q
Description
43inch & 108cm
Series
E7Q
Image Display
Specification
Value
Resolution (Horiz / Vert)
3840×2160
Colour depth
8 Bit + FRC
Image refresh frequency
60Hz
Smooth motion rate
120Hz
Typical brightness of white
275nits
Native contrast ratio
4000 : 1
Viewing Angle (Horiz / Vert)
178 / 178
Quantum Dot
Yes
Wide Colour Gamut
Yes
Response Time
8ms
Connectivity
Specification
Value
RF- Radio frequency input
1
AV input
1
USB interface type 2.0 (Qty / List .)
2 / USB2
Optical digital audio output (SPDIF)
1
Earphone jack
1
HDMI Ports
Specification
Value
HDMI inputs
3
HDMI type 4K@60Hz with HDCP version 2.2
Yes
Enhanced Audio Return Channel ( eARC)
Yes / HDMI 3
CEC- Consumer Electronics Control via HDMI
Yes
Smart TV
Specification
Value
Ethernet port (RJ45 connector)
Yes
Wi-Fi protocols IEEE 802.11
A / B / G / N / AC
Wi-Fi bands
2.4/5.0 Ghz
DLNA compliance
Yes
Bluetooth / BT version
Yes / 5.0
Anyview (Screen mirroring)
Yes
BVOD services
Iview / SBS on Demand / 9Now / Tenplay
Installed applications
Netflix / Youtube / Disney+ / Stan / AppleTV+ / Prime Video
Freeview Plus - HbbTV 2.0
Yes
Web browser
Odin
Image Processing
Specification
Value
Backlight control
Yes
Dynamic backlight control
Yes
Variable refresh rate (VRR)
Yes
Auto low latency mode for VRR
Yes
Zoom function settings
Auto / 16:9 / 4:3 / Movie Zoom
HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)
Yes / Yes / Yes
HDR system (HDR10 / HDR10+ / Dolby Vision)
Yes / Yes / Yes
HLG (Hybrid Log-Gamma) for HDR
Yes
HEVC (H.265) Decoder
Yes
Motion enhancement and compensation (MEMC)
Yes
Picture mode
Standard / Cinema Day / Cinema Night / Dynamic / Sports
Sound
Specification
Value
Audio power output per channel
2×7W
Dolby digital
Yes
Audio enhancement -Type
Dolbyms12, DTS x
Lip-sync adjustment
Yes
Sound mode
Stand / Theatre / Music / Speech / Late Night / Sports
Hi-Concerto
No
EzPlay
Yes
TV Mode
Yes
Features
Specification
Value
On/off timer
Yes
Power off if no signal
Yes
Sleep timer
Yes
Program lock
Yes
OSD transparency control
Yes
Voice command
Yes
Screen mirroring
Screen sharing
USB Media Player
Specification
Value
Time Shift
Refer to Area List + PVR sheet
DTV Recording (EPG scheduling / start from standby )
Yes / Yes
MPEG4 (H.264) / H.265 decoder
Yes / Yes
Hotel Lock
Specification
Value
Clone function for programs, sound and image settings
Yes
Sub-menu lock, including tuning lock
Yes
Keyboard lock
Yes
Maximum volume lock
Yes
Power on volume
Yes
Power on source selection
Yes
Power on RF channel selection
Yes
Power on mode (On / Standby / Last)
Yes / Yes / Yes
Inputs access (Enable / Disable)
Yes
Hardware
Specification
Value
Supply range (Voltage / Frequency)
100 ~ 240V / 50Hz / 60Hz
Standby consumption
< 0.5W
Installation
Specification
Value

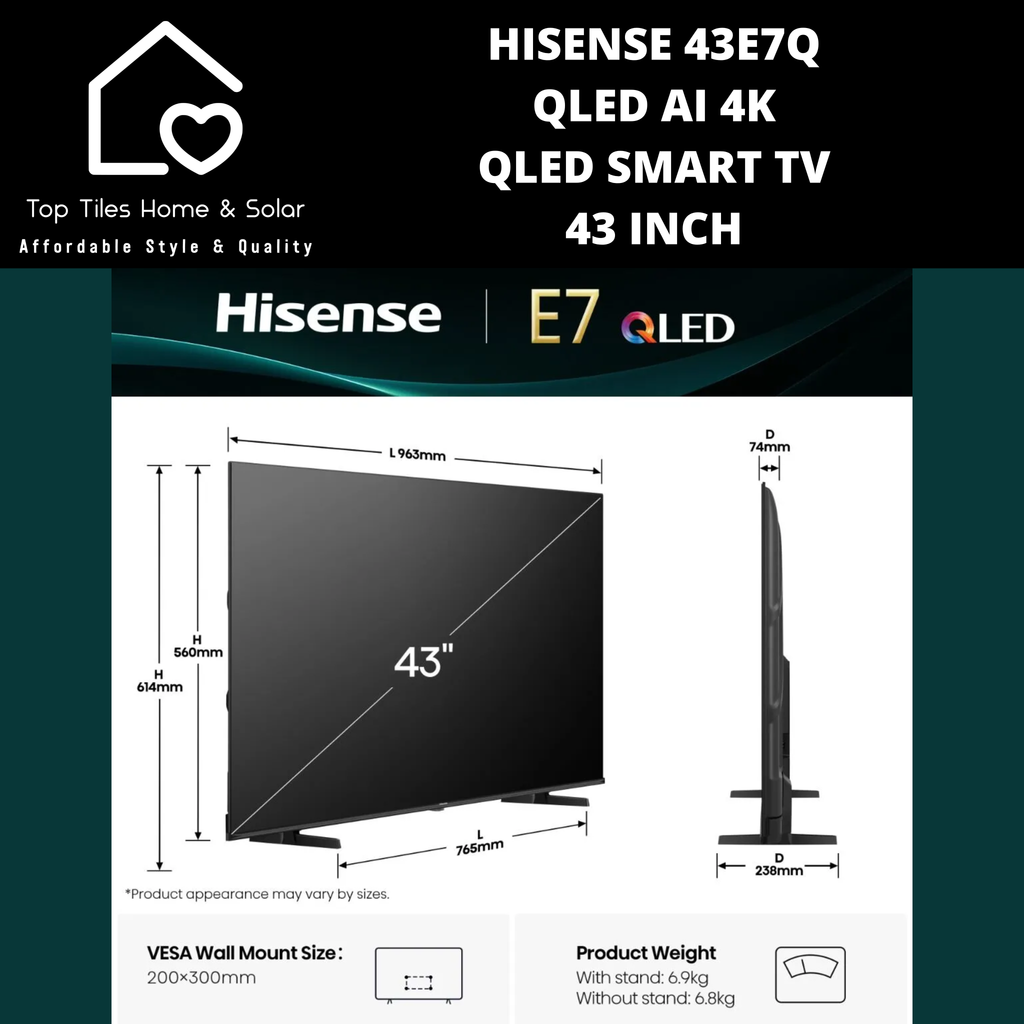

Stand area (Width / Depth) (mm)
765×238
Wall mount dimensions (Horizontal / Vertical) (mm)
