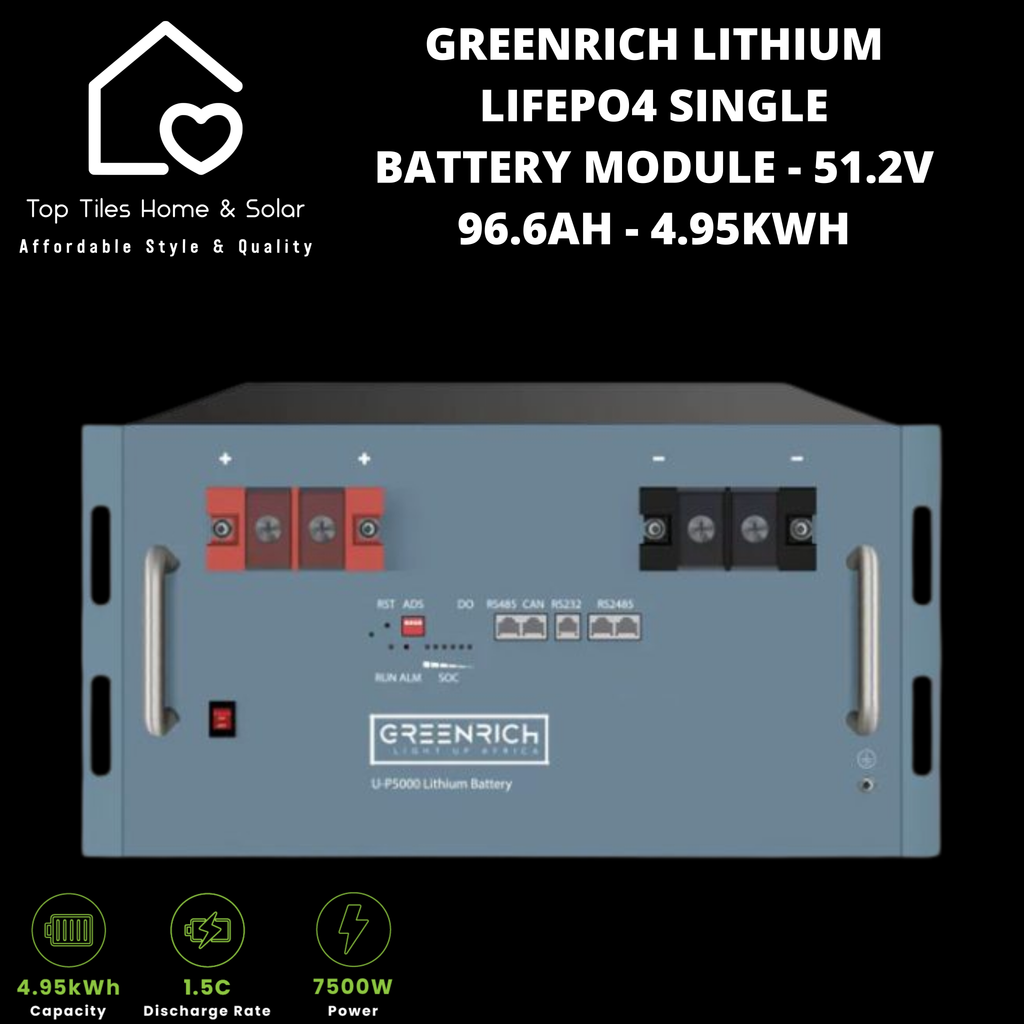

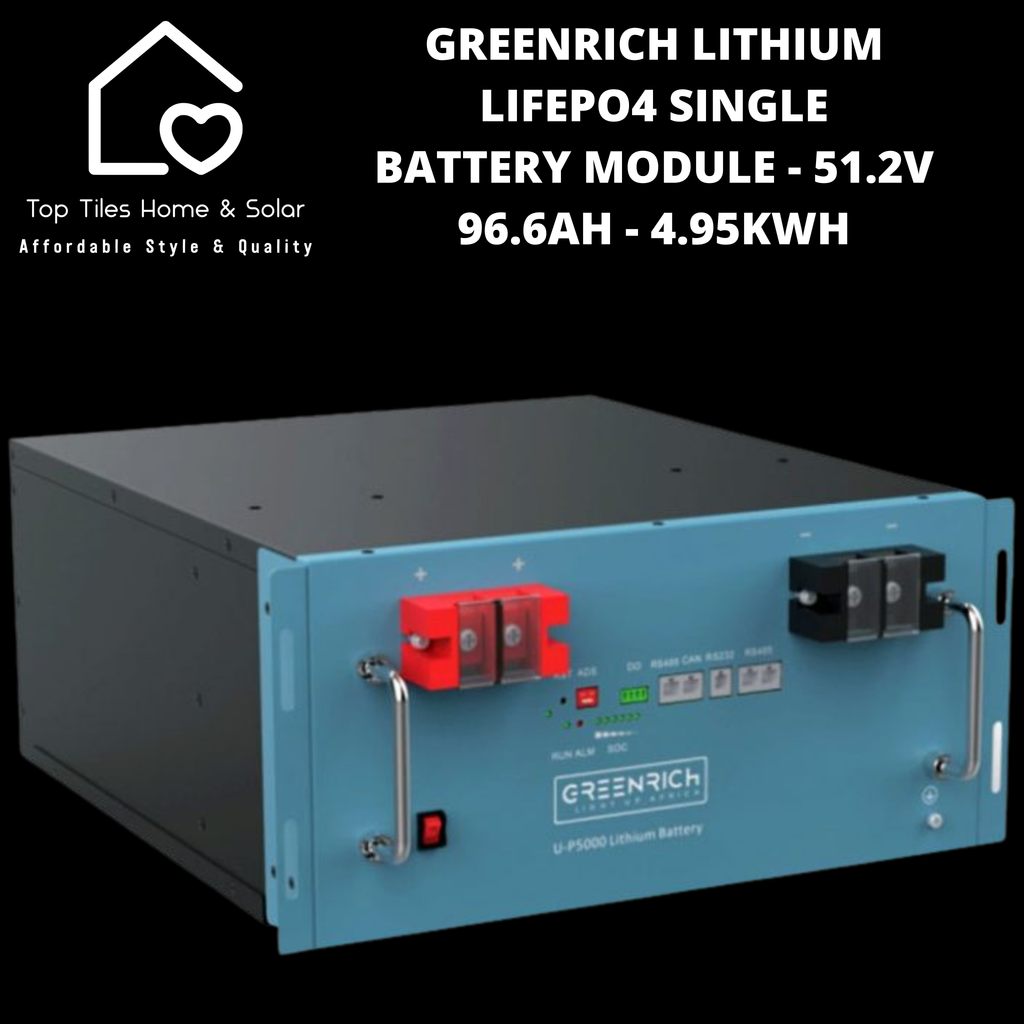

Greenrich UP5000 Lithium LiFePo4 Single Solar Battery Module - 51.2V 96.6Ah 4.95kWh
Greenrich UP5000 Lithium LiFePo4 Single Battery Module - 51.2V 96.6Ah 4.95kWh
The U-P5000 High-Voltage Battery System is a high-capacity energy storage solution designed to meet the demands of larger residential and commercial applications.
With its impressive energy storage capacity, the U-P5000 enables users to store and utilise a significant amount of energy generated by solar panels or other renewable sources.
This battery system offers advanced features such as high-voltage compatibility, intelligent monitoring, and robust safety mechanisms. It is an ideal choice for energy-intensive applications, providing reliable power backup and load management capabilities.
With a capacity of 4.95 kWh and a power output rate of 7500W, this battery ensures more power when you need it.

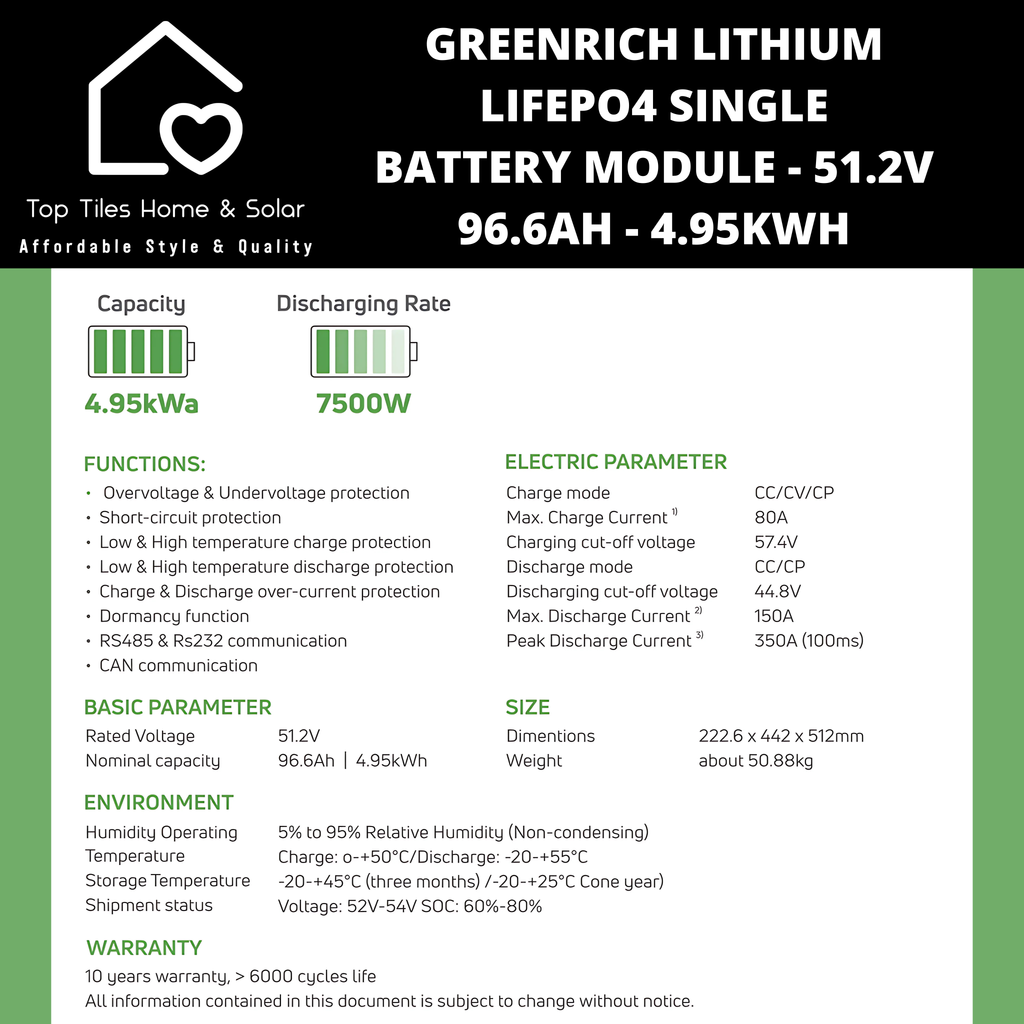

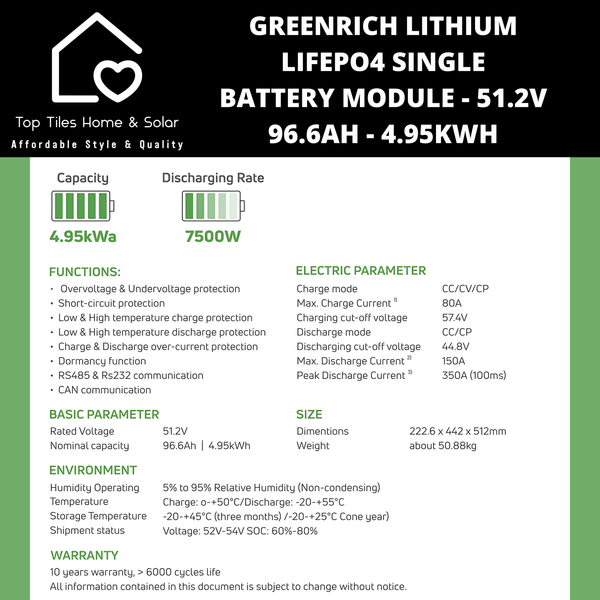

Basic Parameter
- Rated Voltage: 51.2V
- Nominal capacity: 96.6Ah | 4.95kWh
Electric Parameter
- Charge mode CC/CV/CP
- Max. Charge Current (1) 80A
- Charging cut‑off voltage 57.4V
- Discharge mode CC/CP
- Discharging cut‑off voltage 44.8V
- Max. Discharge Current (2) 150A
- Peak Discharge Current (3) 350A (100ms)
1)
For
better
battery
life
cycles,
we
suggest
charge
in
43A(0.5C
@25°C)
2)
For
better
battery
life
cycles,
we
suggest discharge
in
43A(0.5C
@25°C)
3)
Peak
Current
excludes
repeated
short
duration
(less
than
1
00ms)
of
current
pattern.
Size
- Dimensions: 222.6 x 442 x 512mm
- Weight: about 50.88kg
Compatability
Deye, SUNSYNK, Growatt, LUX Power, Goodwe, Voltronic, KODAK, Axpert, Victron etc.
Environment
- Humidity Operating: 5% to 95% Relative Humidity (Non‑condensing)
- Temperature Charge꞉ o‑+50°C/Discharge꞉ ‑20‑+55°C
- Storage Temperature: ‑20‑+45°C (three months) /‑20‑+25°C Cone year)
- Shipment status Voltage꞉ 52V‑54V SOC꞉ 60%‑80%
Warranty
10 years warranty, > 6000 cycles life
