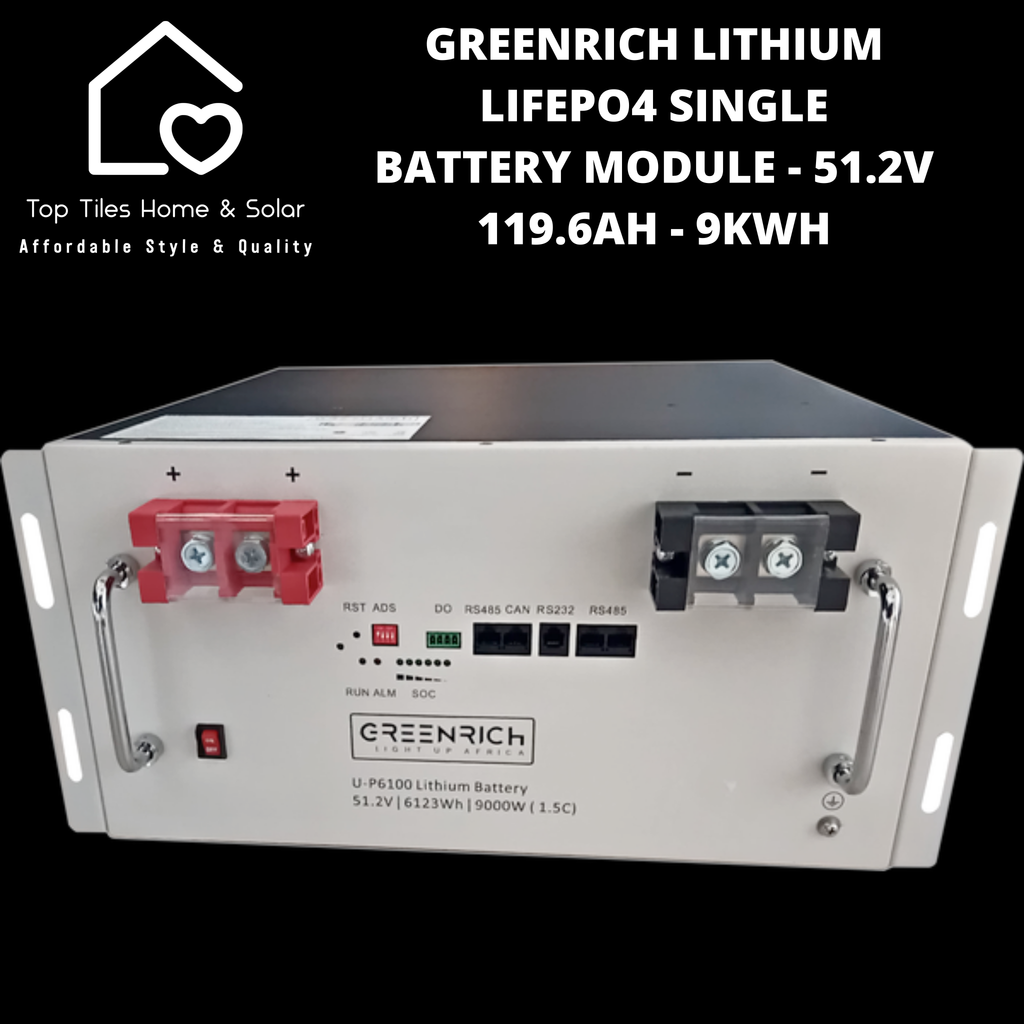

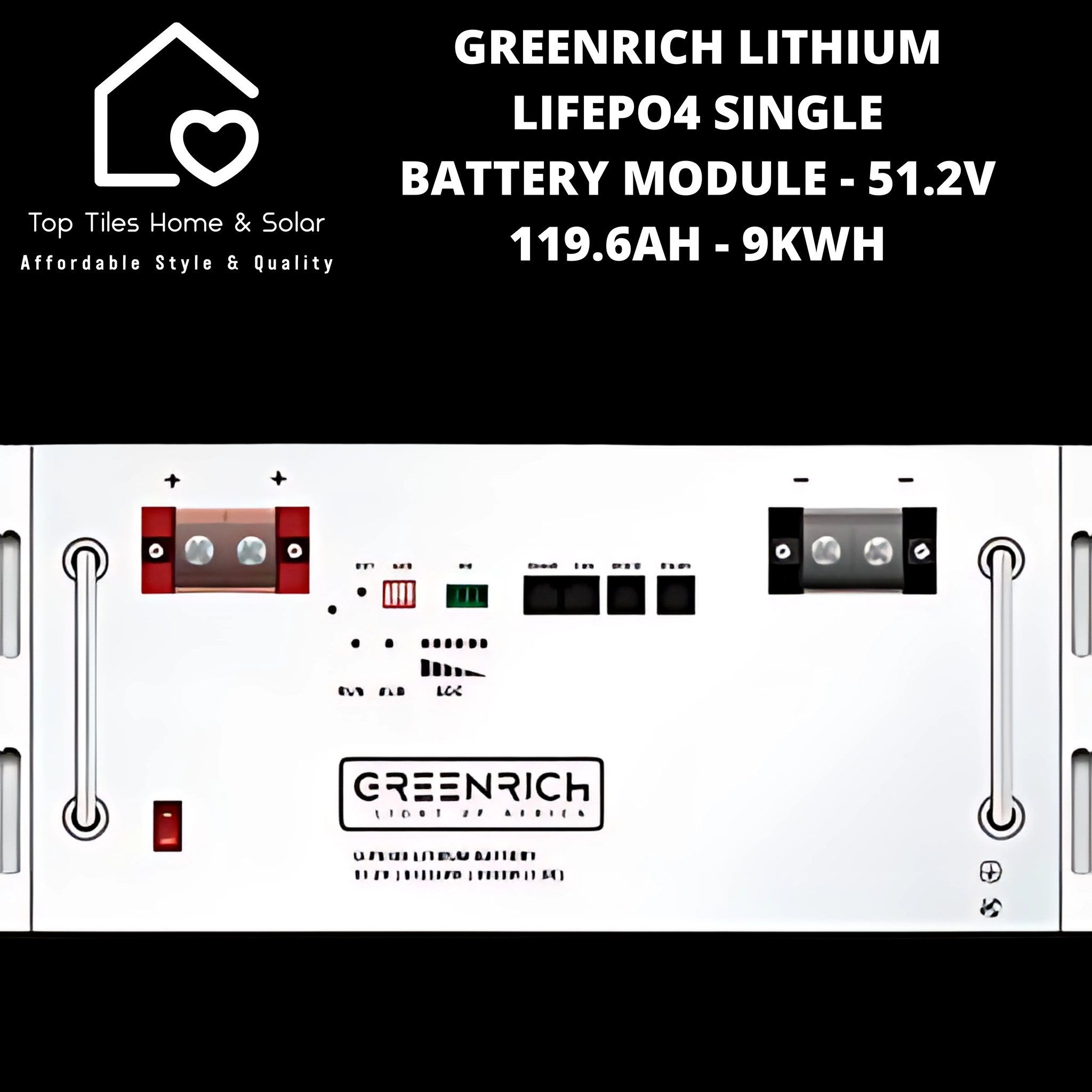

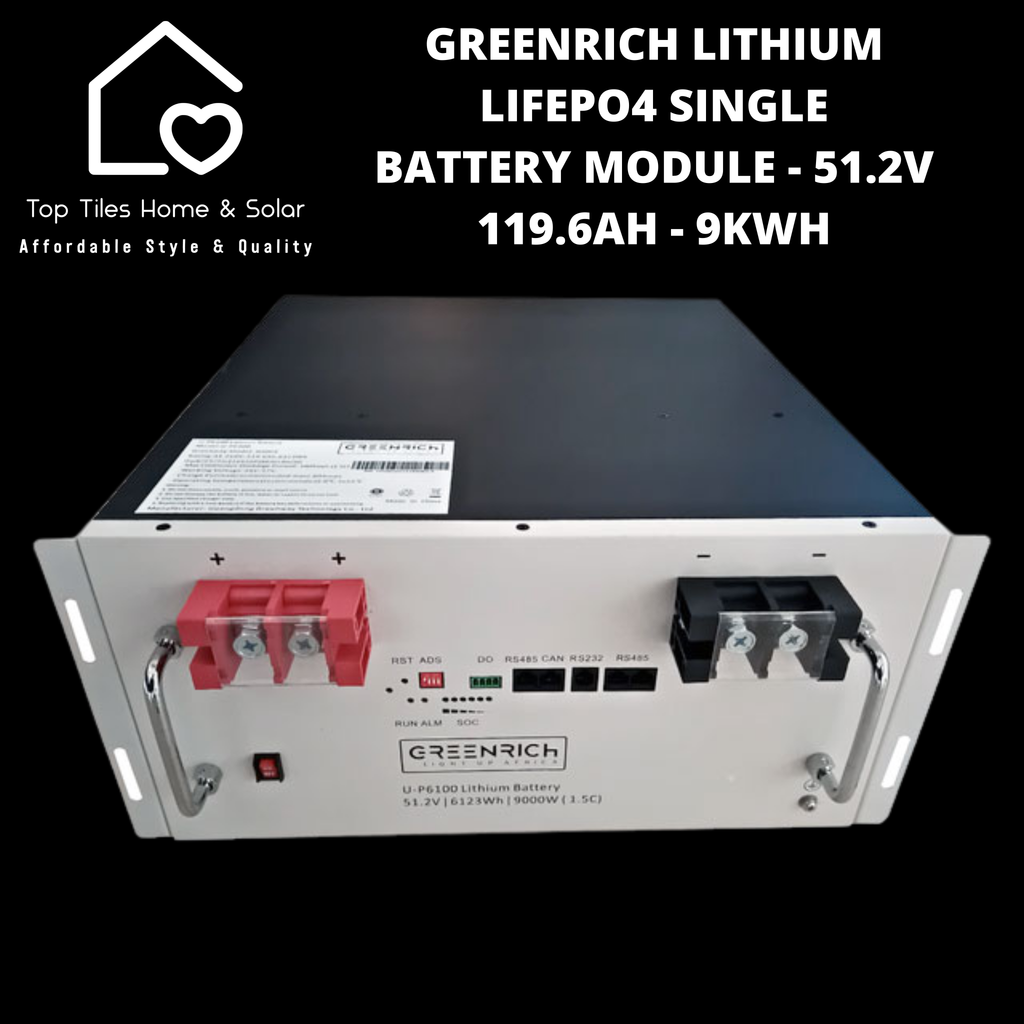

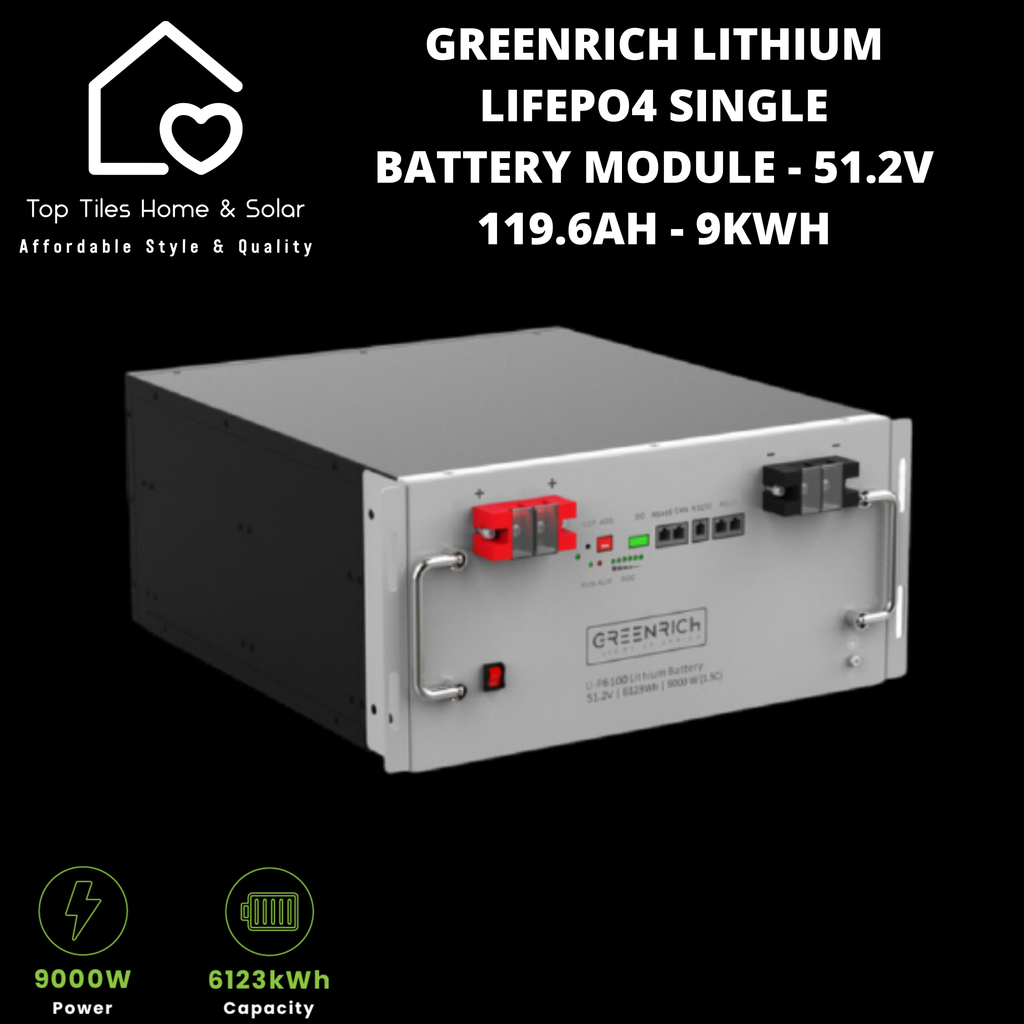

The newest addition to our family, this powerful energy storage solution is designed to meet the demands of residential and commercial applications with its impressive capacity and reliable performance. With a whopping 6123 watt-hours of energy storage, the Greenrich U-P6100 offers ample power (9000W) to support a range of energy needs, from running essential appliances during outages to maximising self-consumption of solar energy. This cutting-edge lithium battery is built with advanced technology and high-quality components, ensuring long-lasting durability and exceptional efficiency. Whether you’re aiming for energy independence or seeking backup power solutions, the Greenrich U-P6100 provides a robust and sustainable energy storage solution that empowers you to take control of your energy usage.
Functions
- Discharge Current 200A (1.5C continous)
- Overvoltage & undervoltage protection
- Short-circuit protection
- Low & high temperature charge protection
- Low & high temperature discharge protection
- Charge & discharge over-current protection
- Dormancy function
- RS485, RS232 & CAN communication
- Rated Voltage: 51.2V
- Nominal capacity: 119.6Ah | 6123Wh
- Rated Power: 9000W
Electric Parameter
- Charge mode: CC/CV/CP
- Max. Charge Current (1): 80A
- Charging cut‑off voltage: 57.4V
- Discharge mode: CC/CP
- Discharging cut‑off voltage: 44.8V
- Max. Discharge Current (2): 200A (1.5C continuous)
- Peak Discharge Current (3): 350A (100ms)
1)
For
better
battery
life
cycles,
we
suggest
charge
in
60A(0.5C
@25°C)
2)
For
better
battery
life
cycles,
we
suggest discharge
in
60A(0.5C
@25°C)
3)
Peak
Current
excludes
repeated
short
duration
(less
than
1
00ms)
of
current
pattern.
Size
- Dimensions: 220.6 x 483 x 536mm
- Weight: about 57kg
Environment
- Humidity Operating: 5% to 95% Relative Humidity (Non‑condensing)
- Temperature: Charge꞉ o‑+50°C/Discharge꞉ ‑20‑+55°C
- Storage Temperature: ‑20‑+45°C (three months) /‑20‑+25°C Cone year)
- Shipment status: Voltage꞉ 52V‑54V SOC꞉ 60%‑80%
Compatibility
Deye, SUNSYNK, Growatt, LUX Power, Goodwe, Voltronic, KODAK, Axpert, Victron etc.
Warranty
10 years warranty, > 6000 cycles life
